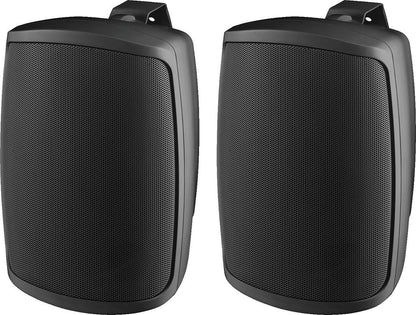

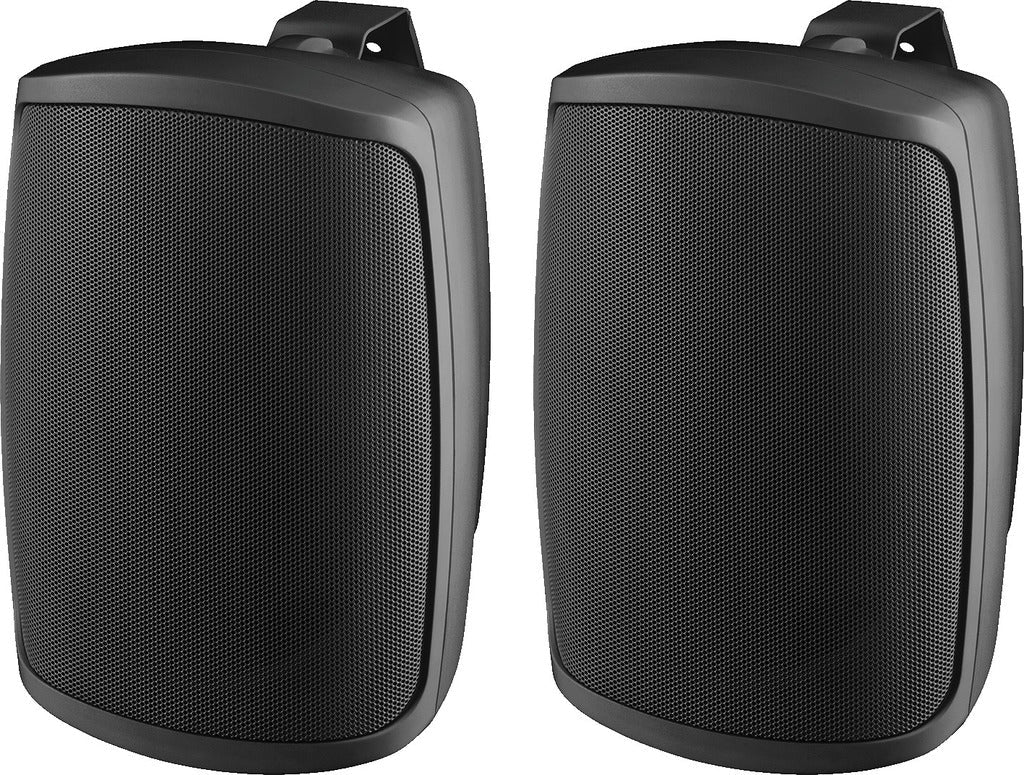

Experience high-quality audio and speech clarity in any environment with the Monacor WALL-06T/SW pair of 2-way PA speaker systems. Designed for maximum flexibility, these robust speakers are the perfect choice for professional installations, from busy restaurants and shops to outdoor venues.
Â
Â
Dual-Operation Flexibility: Easily switch between 100 V line operation with multiple power taps (32/16/8/4 W) and conventional 8 $\Omega$ low-impedance mode (50 W RMS), making integration into any PA system simple.

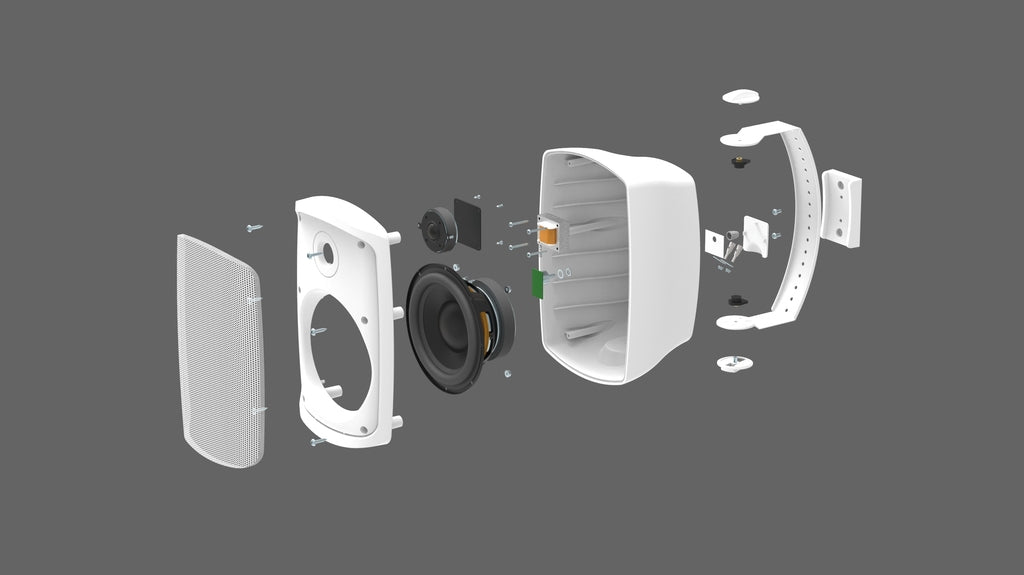

Premium Sound Components: Features a 2-way system with a powerful 16 cm (6") bass-midrange speaker and a 25 mm (1") dome tweeter to deliver a wide frequency range of 70-20,000 Hz for excellent sound quality and intelligibility.
Weatherproof Design (IP65): The durable plastic cabinet is IP65 rated, ensuring protection against dust and splashes, making it highly suitable for permanent outdoor installation and challenging indoor environments.
Optimal Placement: Supplied with a sturdy mounting bracket that allows for convenient pivoting and tilting, letting you precisely direct the sound for optimal coverage.
Professional Finish: Comes in a sleek black plastic cabinet with a connecting terminal cover for a clean, professional appearance.
Whether you need reliable background music for a retail space or clear announcements for a patio area, the WALL-06T/SW delivers.
| WALL-06T/SW | |
|---|---|
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 100 W |
| Power rating (RMS) | 32/16/8/4Â W (100Â V)
50 W (8 Ω) |
| Impedance | 8 Ω |
| Frequency range | 70-20,000 Hz |
| System | 2-way |
| Bass speaker | 16 cm (6") bass-midrange speaker |
| Tweeter | 25 mm (1") dome tweeter |
| Number of speakers | 2 |
| Speaker size | 16 cm (6") |
| SPL | 90 dB/W/m |
| Max. rated SPL | 106 dB |
| Radiation angle/beam angle | H: 110°/V: 90° |
| Radiation angle, horizontal | 110° |
| Radiation angle, vertical | 90° |
| Housing material | plastic |
| Colour | black |
| Mounting device | mounting bracket |
| Protection class | IP65 |
| Admiss. ambient temp. | 0-40 °C |

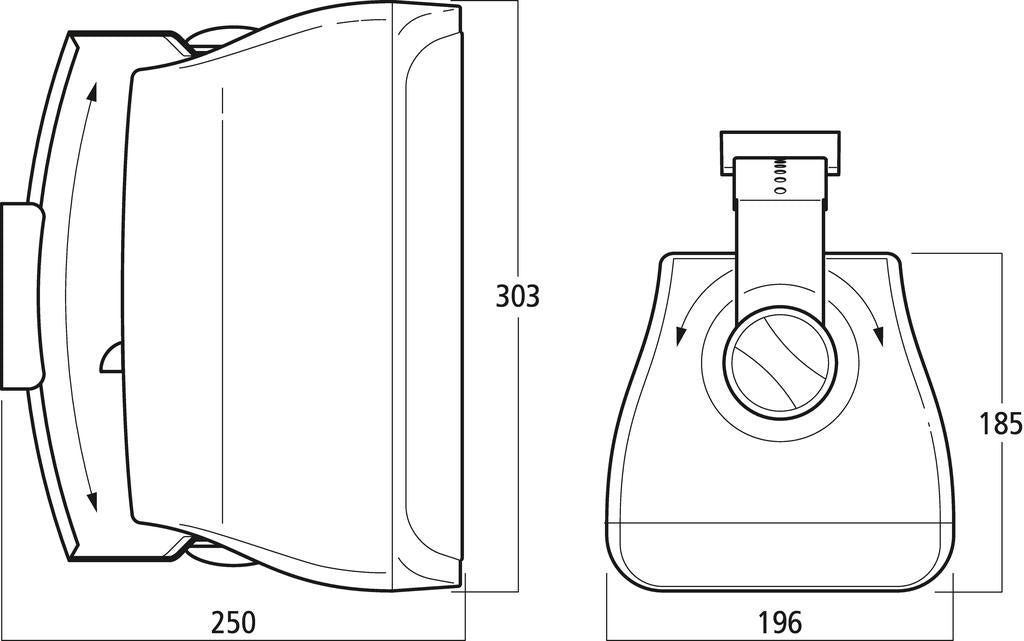

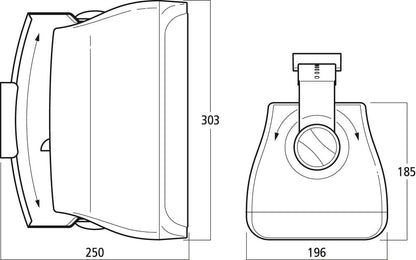

| Dimensions | 196 x 303 x 250 mm (with bracket) |
| Width | 196 mm |
| Height | 303 mm |
| Depth | 250 mm |
| Weight | 3.5 kg |
| Inputs | spring-load. speaker term. |
| Other features | for pivoting and tilting |
| Packaging dimensions (W x H x L) | 0.235 x 0.33 x 0.505 m |
| Gross weight | 7.63 kg |
| Net weight | 6.97 kg |
