OMNITRONIC CST-6 2-Way Ceiling Speaker 6" 30W 100V

OMNITRONIC CST-6 2-Way Ceiling Speaker 6" 30W 100V

RRP

£59.00

inc VAT

£59.00
Sold out
Tax included. Shipping calculated at checkout.
OMNITRONIC CST-6 2-way Ceiling Speaker   The OMNITRONIC CST-6 is a powerful 2-way flush-mount speaker designed for high-quality speech and background music in indoor Public Address (PA) systems utilizing 100...
Vendor: OMNITRONIC
SKU: CST-6

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

OMNITRONIC CST-6 2-way Ceiling Speaker



The OMNITRONIC CST-6 is a powerful 2-way flush-mount speaker designed for high-quality speech and background music in indoor Public Address (PA) systems utilizing 100 V line technology.



Key Features

  • 2-Way System: Features a 6" woofer (approx. 15 cm) and a 0.5" tweeter (approx. 1.27 cm) for excellent sound playback.

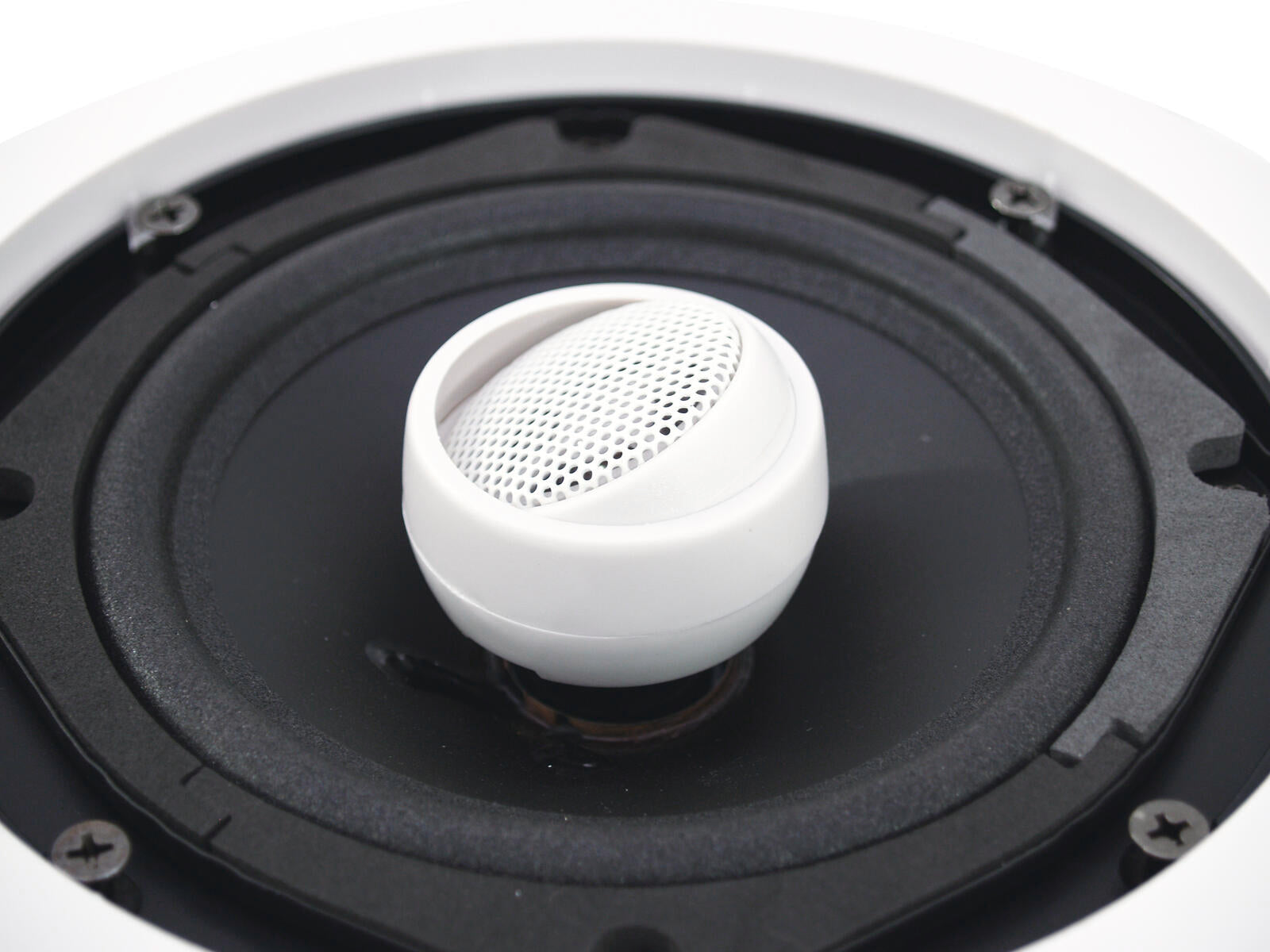

  • Movable Tweeter: The tweeter is often described as pivotable or swivel to allow precise sound alignment and better room coverage.

  • Technology: Operates on a 100 V public address system.

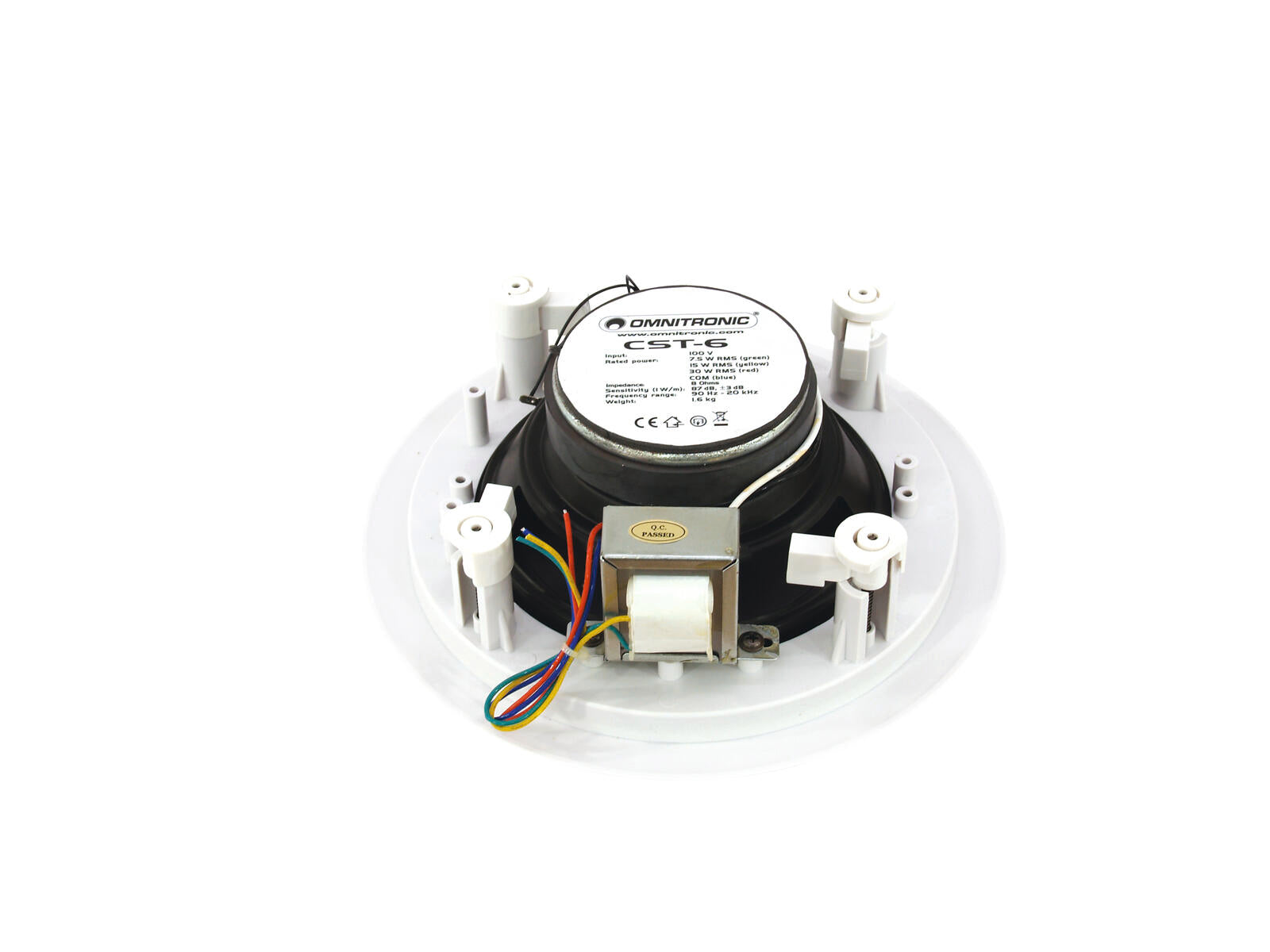

  • Power Taps: Features an integrated 100 V transformer with three switchable power taps for flexible volume adjustment across different zones or areas.

  • Installation: Designed for easy installation in false ceilings using a clip mounting system.

  • Durability: Described as scratchproof and shockproof, with a metal grille.



Technical Specifications

Feature Detail
Type 2-way Flush-mount Ceiling Speaker (Passive)
Transmission Technology 100 V ELA (Public Address)
Components 6" Woofer, 0.5" Tweeter
Power Rating (RMS) 20 W (Nominal)
Program Power 40 W
Power Tapping (100 V) 7.5 W, 15 W, 30 W RMS (Switchable via open cable ends)
Frequency Range 90 Hz – 20 kHz
Sensitivity (1W/1m) 87 dB
Max. SPL (1m) 99 dB (or 103 dB in some listings)

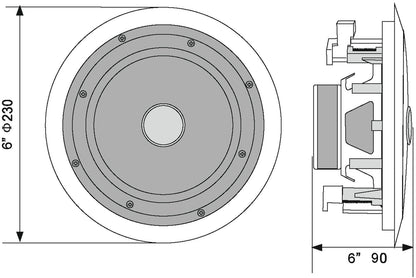

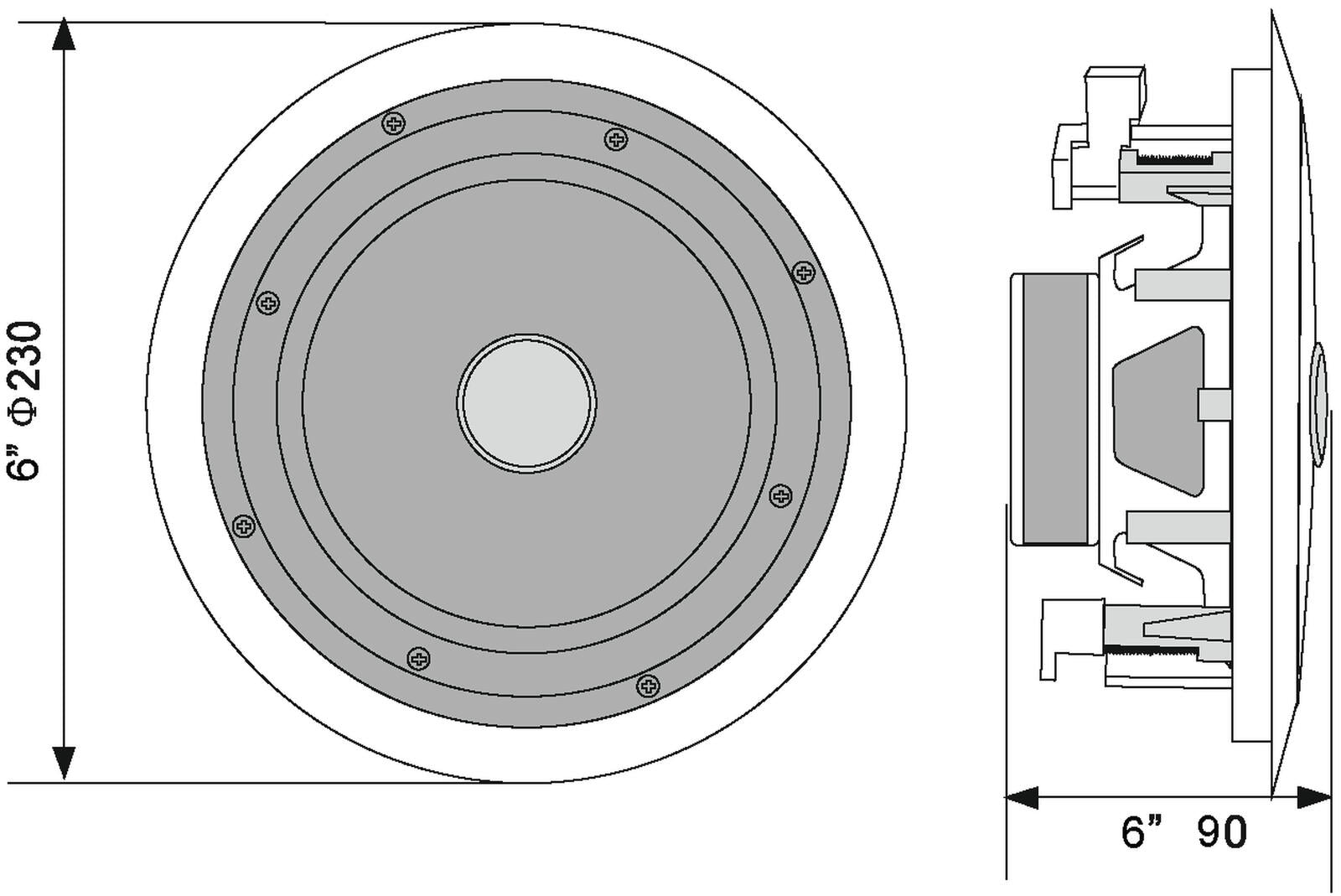

Mounting Cutout Ø 200 mm (20 cm)
Outer Diameter Ø 230 mm (23 cm)
Mounting Depth 90 mm (9 cm)
Weight 1.60 kg
Color White (Black also exists for this series, but white is standard for this model number)
Protection Rating IP20 (Indoor use)
Applications Restaurants, bars, hotels, offices, retail spaces, fitness areas
