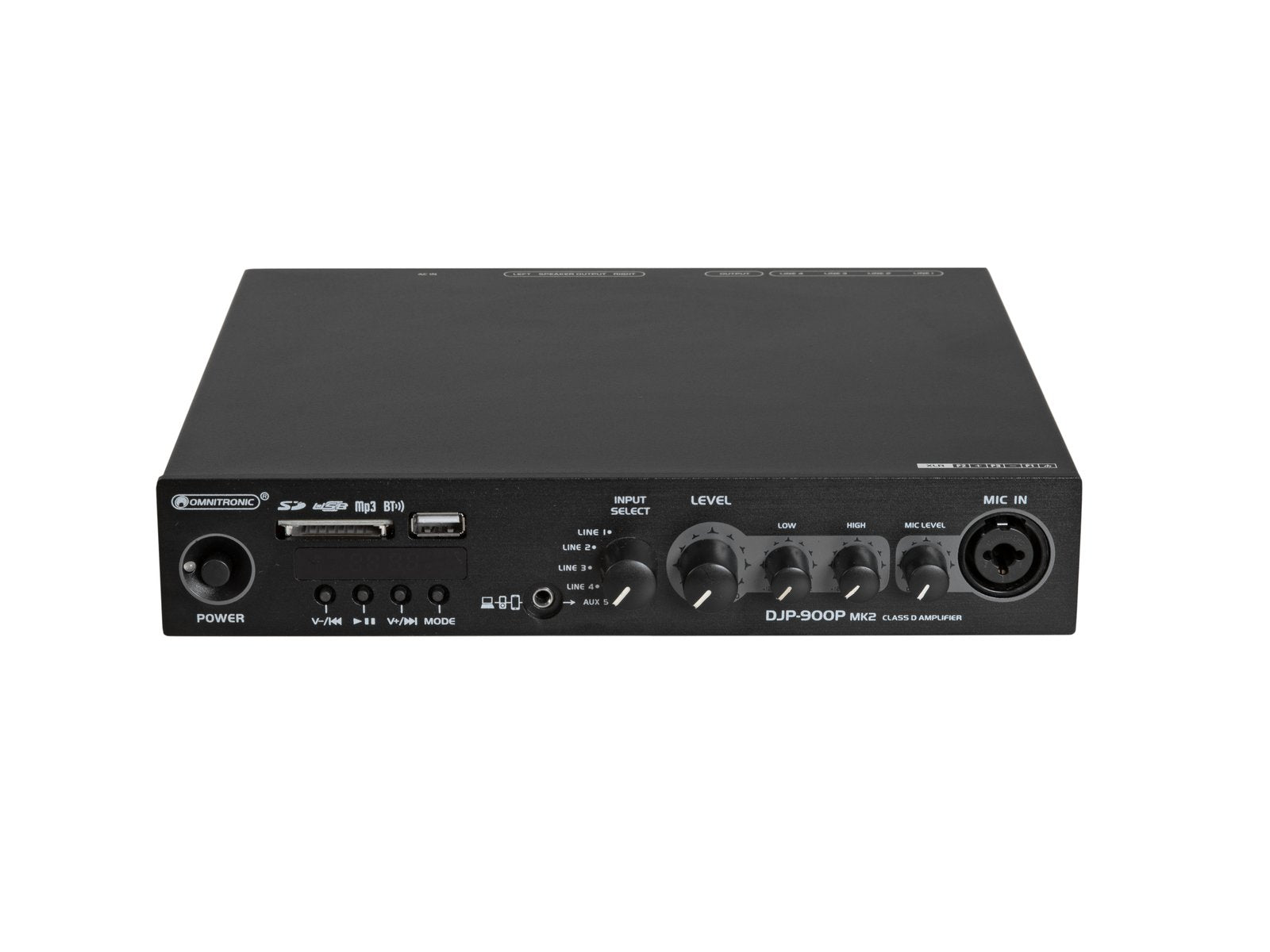

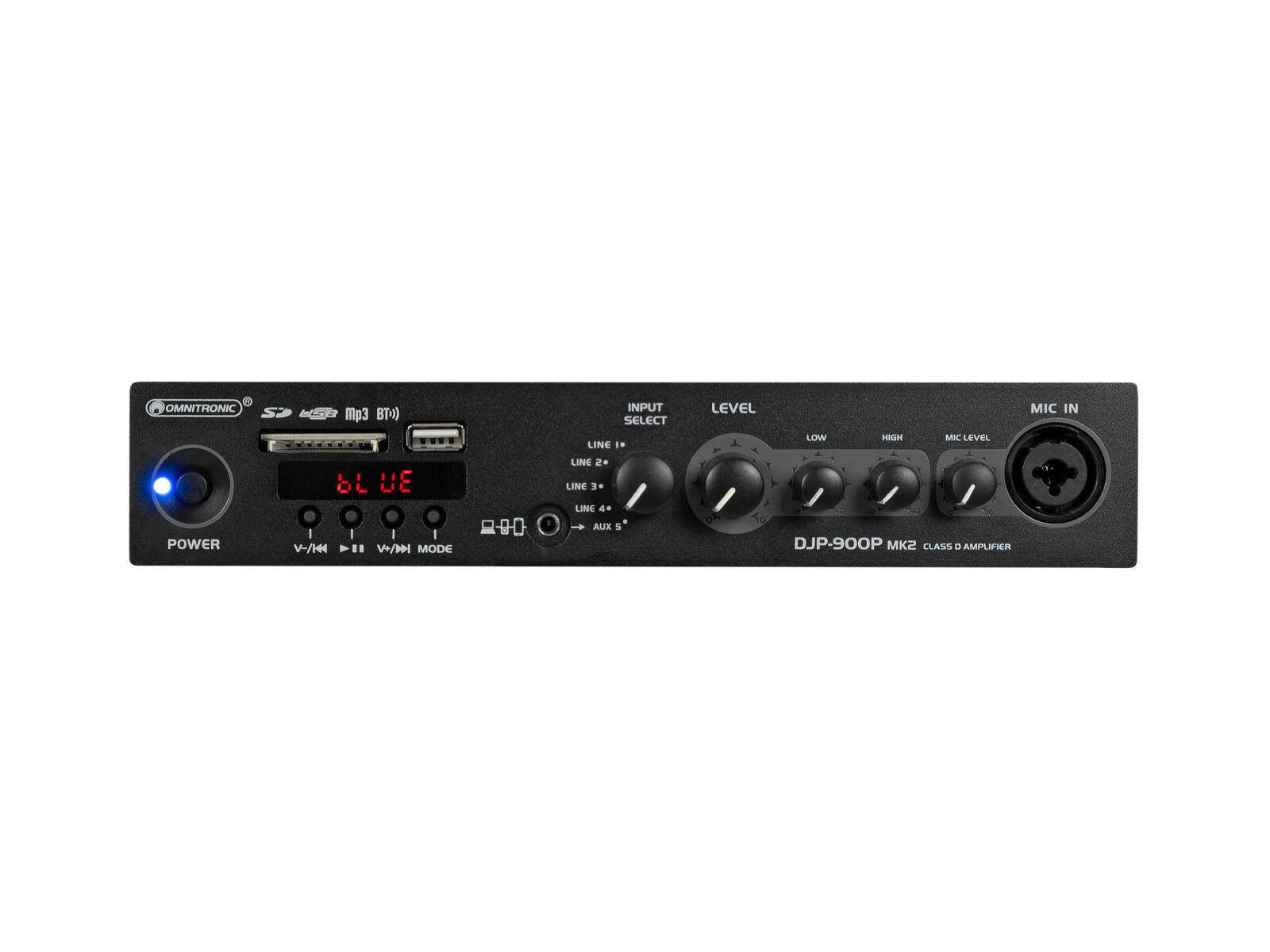

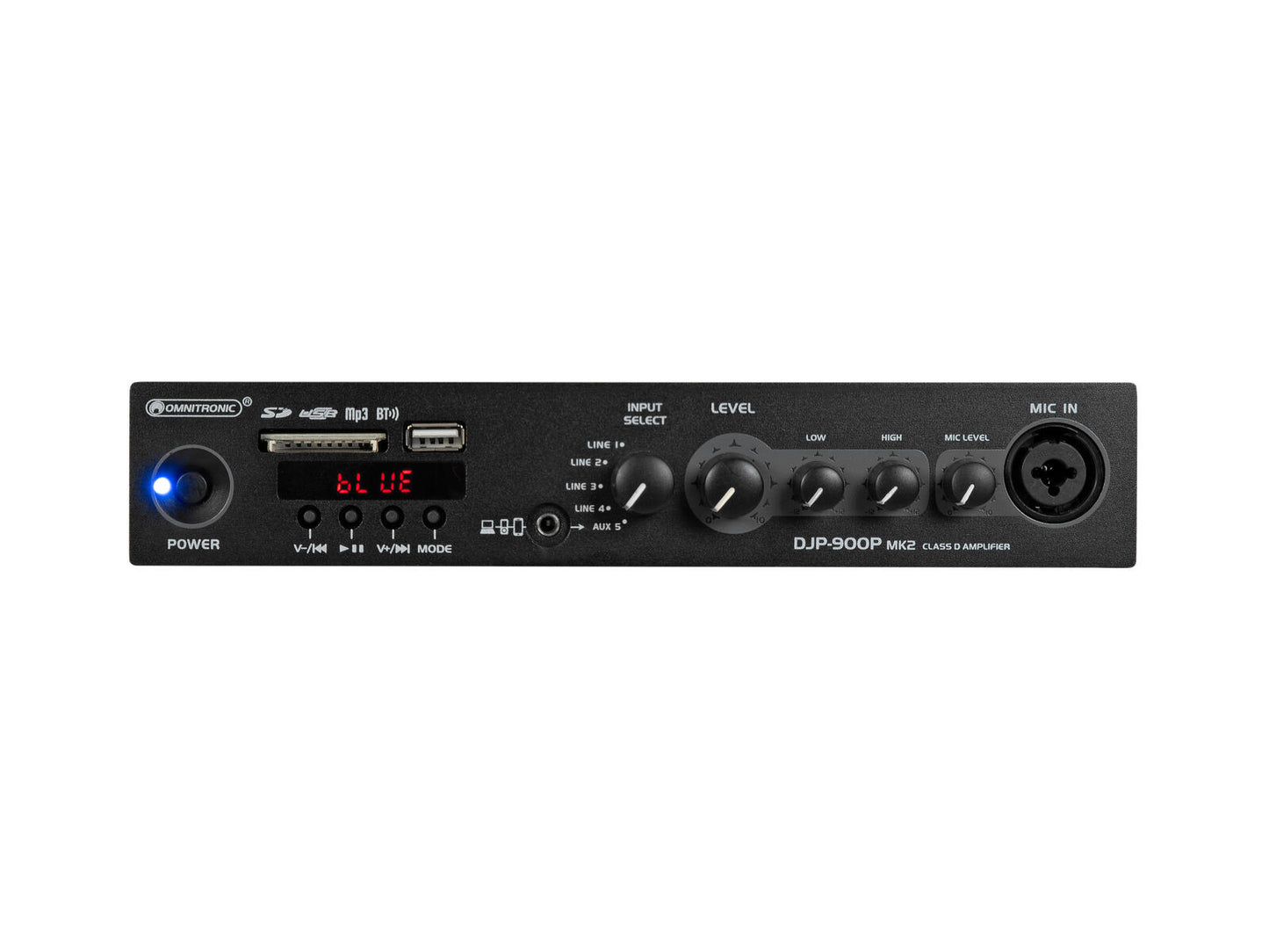

OMNITRONIC DJP-900P MK2 Class D Amplifier (Mixing Amplifier with Player)

The OMNITRONIC DJP-900P MK2 is a compact stereo mixing amplifier with a built-in media player and Bluetooth connectivity, designed for permanent audio installations that require quick-access music playback and microphone mixing.

Key Features and Benefits:

• All-in-One Design: Combines a power amplifier, a mixer for line and mic signals, and a media player in a single unit.

• Integrated Audio Player with Bluetooth: Allows wireless music streaming from smartphones, tablets, or computers via Bluetooth (2.4 GHz, up to 10m range). The player also features slots for USB storage devices and SD(HC) memory cards.

• High Efficiency (Class D): Utilizes efficient Class D output circuitry and an integrated switch mode power supply, resulting in extremely low weight and height for easy installation.

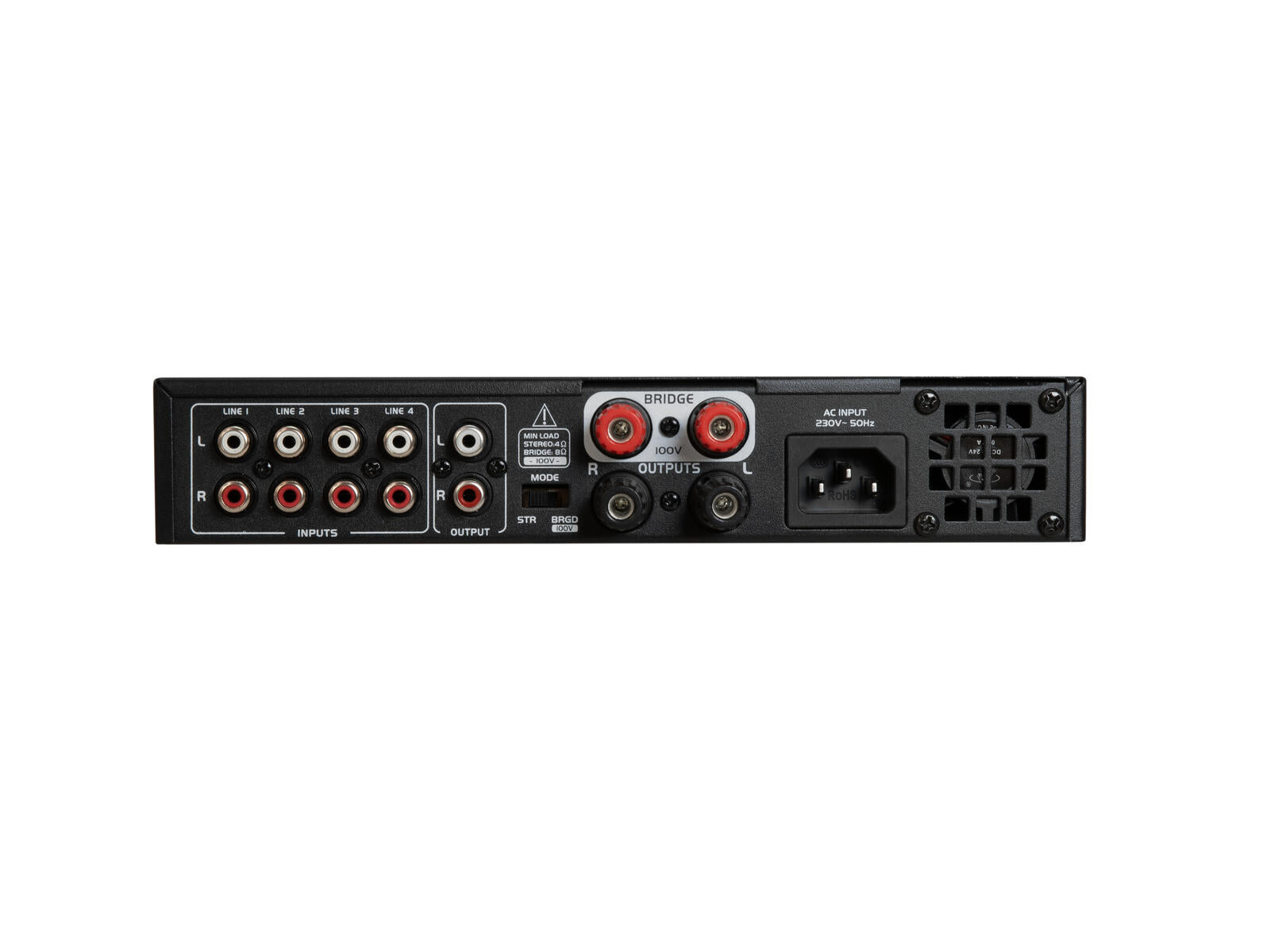

• Flexible Speaker Connection: Supports connection of both:

  • Low-impedance speakers (4 ohms minimum).

  • 100V PA speakers (via built-in audio transformers).

• Power Output Modes:

  • Stereo Mode: Delivers 2 x 460 W at 4 ohms.

  • Bridge/Mono Mode: Can be switched to bridge mode for 900 W output, ideal for driving a single, high-power speaker or a 100V line.

• Mixing Capability: Features 1 mono microphone input with its own volume control on the front panel, making it easy to use for announcements or presentations.

• Protection Circuits: Includes extensive protective circuits against short circuit, overload, and overheating for reliable long-term operation.

• Installation:

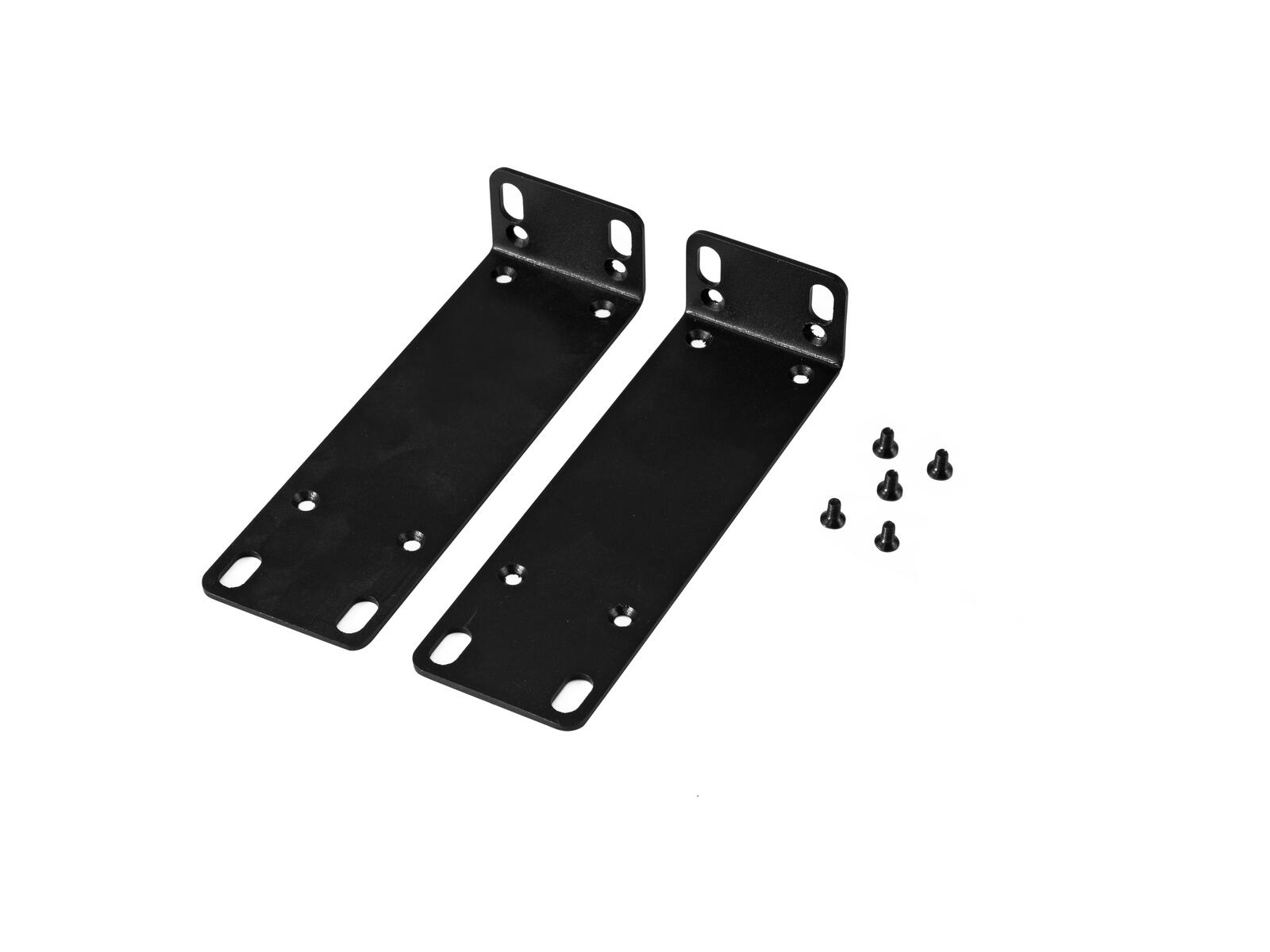

  • Compact Size: Fits into a 19" (48.3 cm) rack, taking up only 1 U (height unit) of space.

  • Display: Monochrome 4-digit 7-segment LED display.

• Applications: Particularly suitable for permanent installations in restaurants, bars, hotels, sports centers/gyms, and retail locations.

Technical Specifications:
