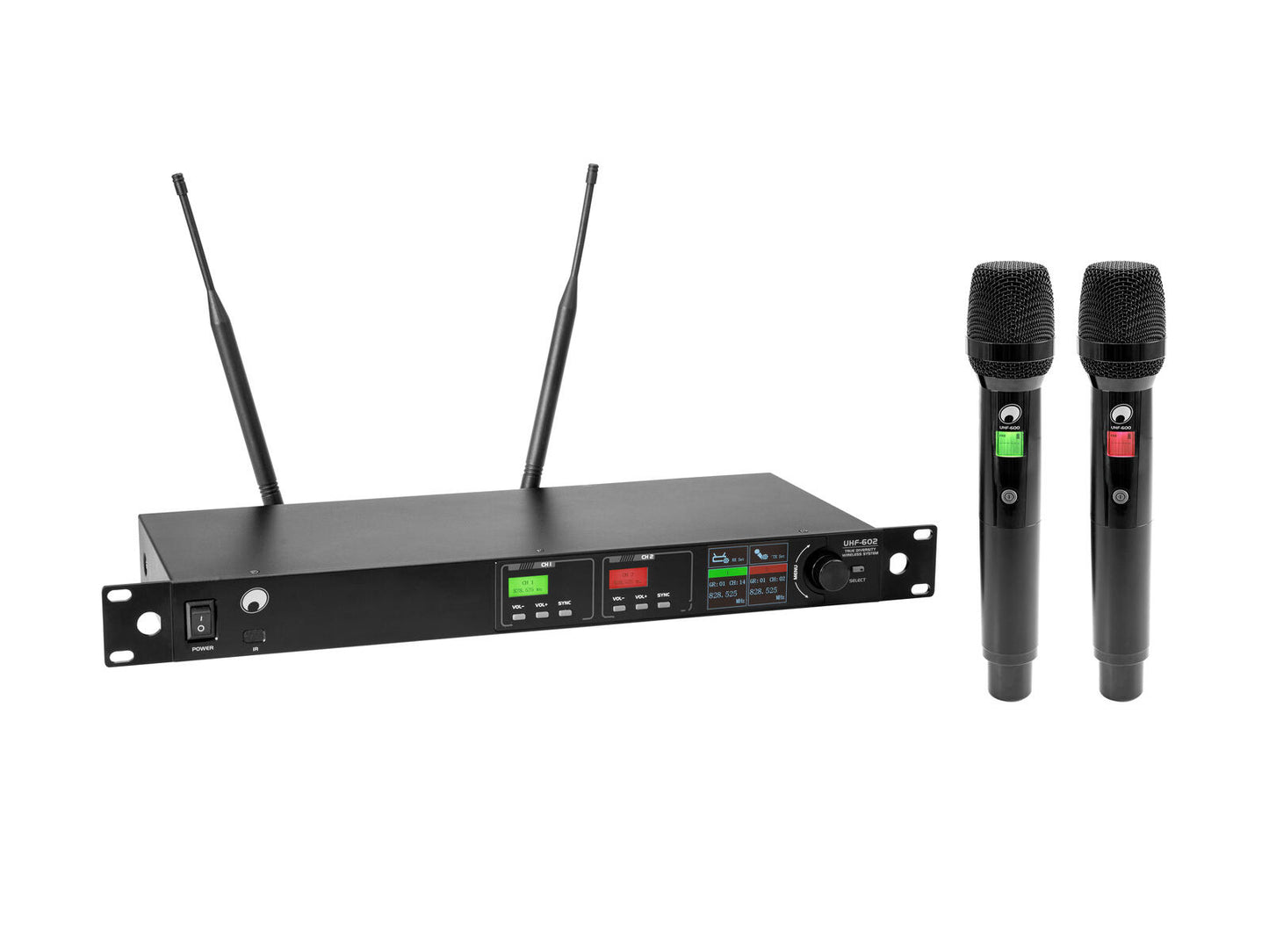

The OMNITRONIC UHF-602 is a professional, 2-channel true diversity wireless microphone system, providing reliable, high-quality audio transmission for moderate multi-channel systems, presentations, and events. It features an array of professional functions including true diversity reception, automatic frequency scanning, and an integrated 7-band equalizer for comprehensive sound control.
True Diversity Reception: Guarantees signal stability and resistance to dropouts by continuously choosing the stronger signal from two receiver circuits per channel.
High Channel Count Capability: Although a 2-channel unit, it is ideal for systems requiring many microphones, supporting up to 24 transmitters across its two frequency bands to be operated in parallel without interference.
User-Friendly Setup: Features Auto Scan for finding clear frequencies and Automatic Frequency Setup for fast synchronization between the receiver and transmitters.
Integrated Equalizer: A 7-band graphic equalizer allows for precise sound tuning on the receiver for each channel.
Licence-Free Operation: Operates within the UHF 823 - 832 MHz and UHF 863 - 865 MHz ranges, which are license-free and approved for use in large parts of Europe.
Enhanced Security: ID transmitter verification prevents incorrect use and interference from external radio signals.

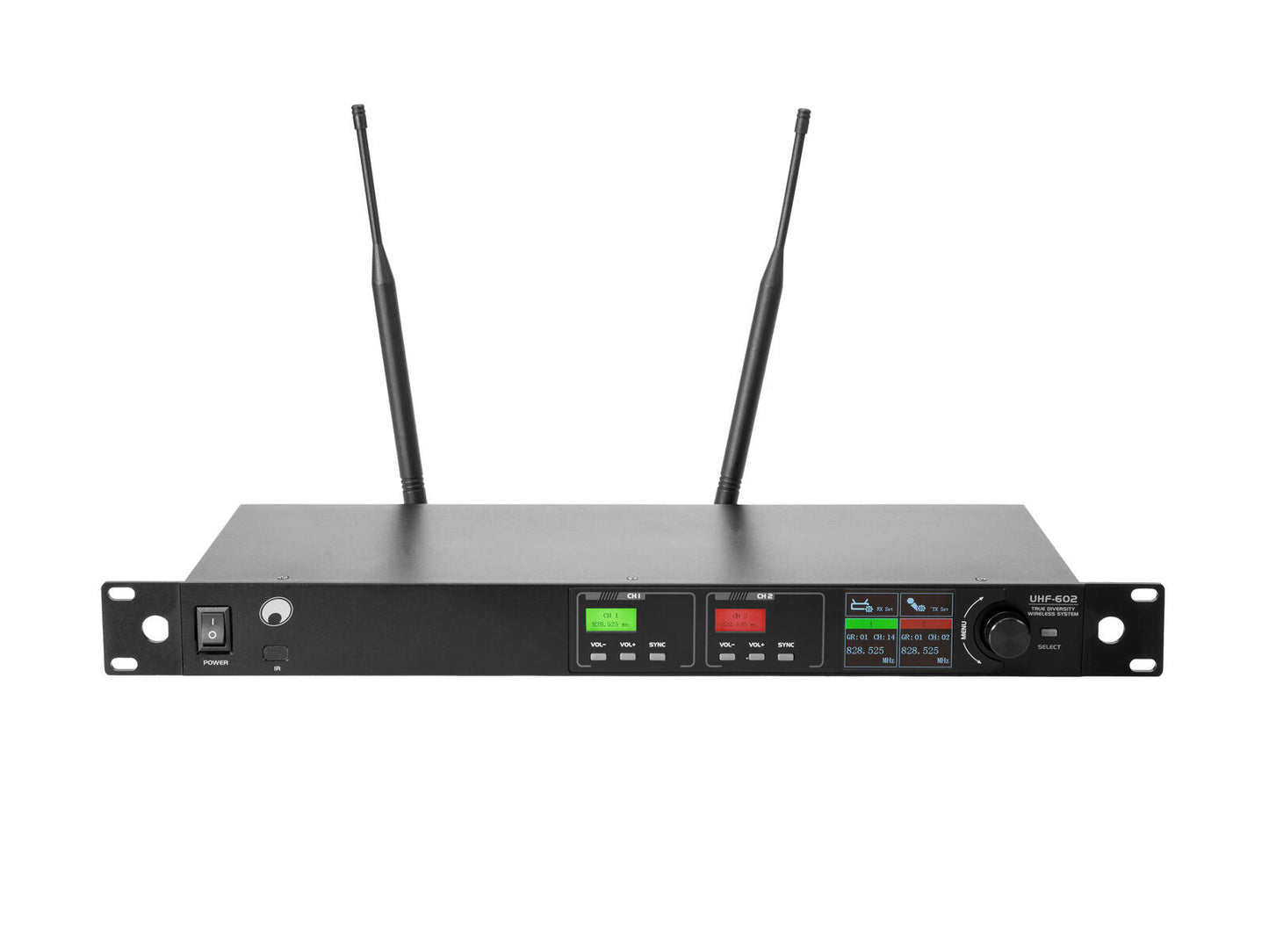

Professional Display: The receiver is equipped with multicolor TFT displays to monitor frequency, group, channel, RF signal level, AF audio level, and mute status.
| Feature | Specification |
| System Type | UHF True Diversity Wireless Set |
| Number of Channels | 2 |
| Frequency Bands | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Switching Bandwidth | 11 MHz |
| Max Parallel Transmitters | 24 (in 2 bands) |
| Operating Range | Up to 60 meters (line-of-sight) |
| Frequency Range | 50 - 16,000 Hz |
| Latency | < 3 ms (Ultra-low) |
| Modulation | FM |
| S/N Ratio | >80 dB |
| THD | <0.5% at 1 kHz |
| Receiver Display | 3 x multicolor TFT display |
| Receiver Housing | Metal, (19") 48.3 cm rack installation (1 U) |
| Receiver Dimensions | Width: 48.5 cm, Depth: 21 cm, Height: 4.4 cm |
| Receiver Weight | 1.5 kg |

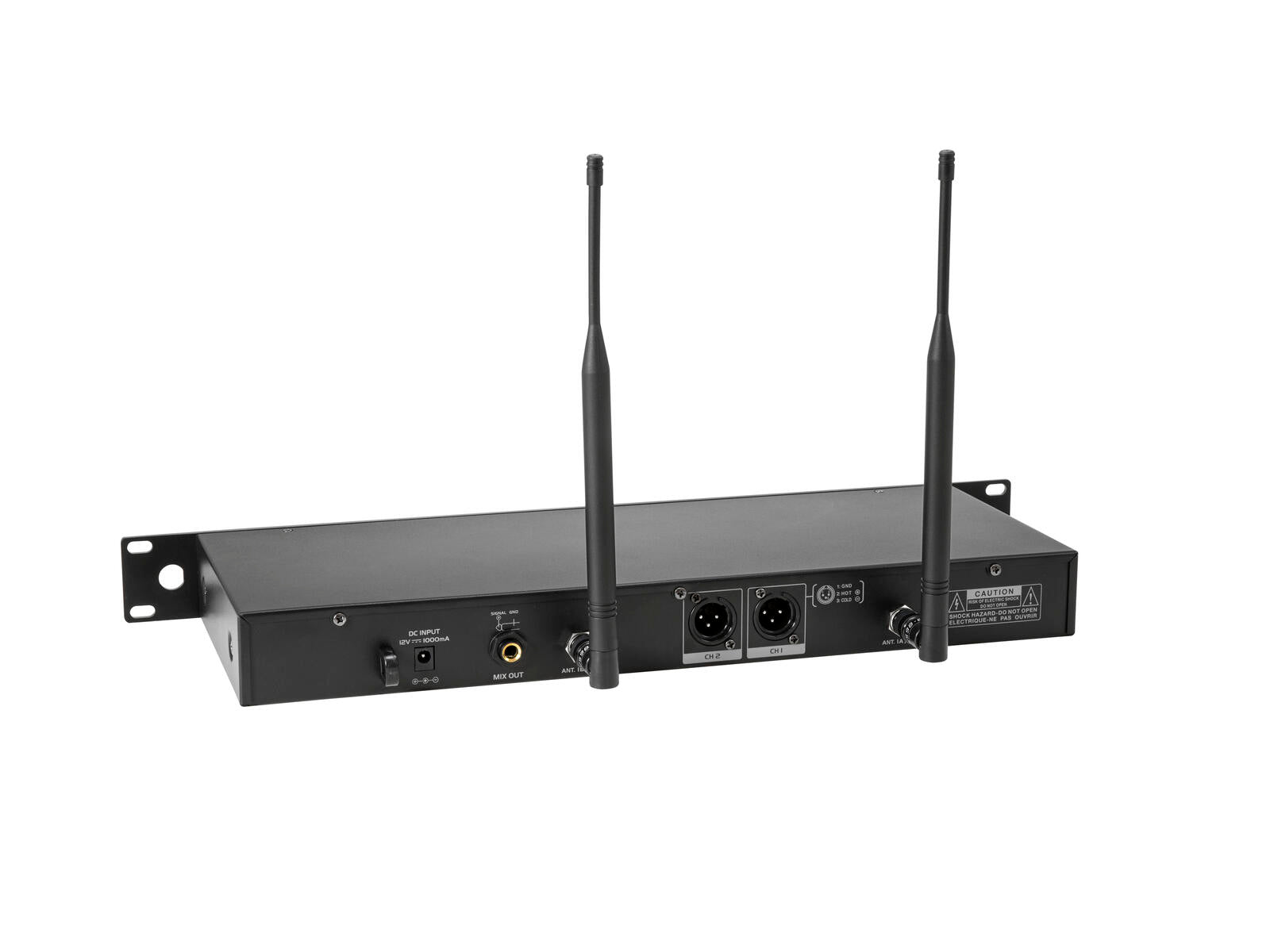

| Receiver Connections | Input: 2 x BNC (Antenna); Output: 2 x 3-pin XLR (M) (balanced); 1 x 6.3 mm plug (unbalanced) |

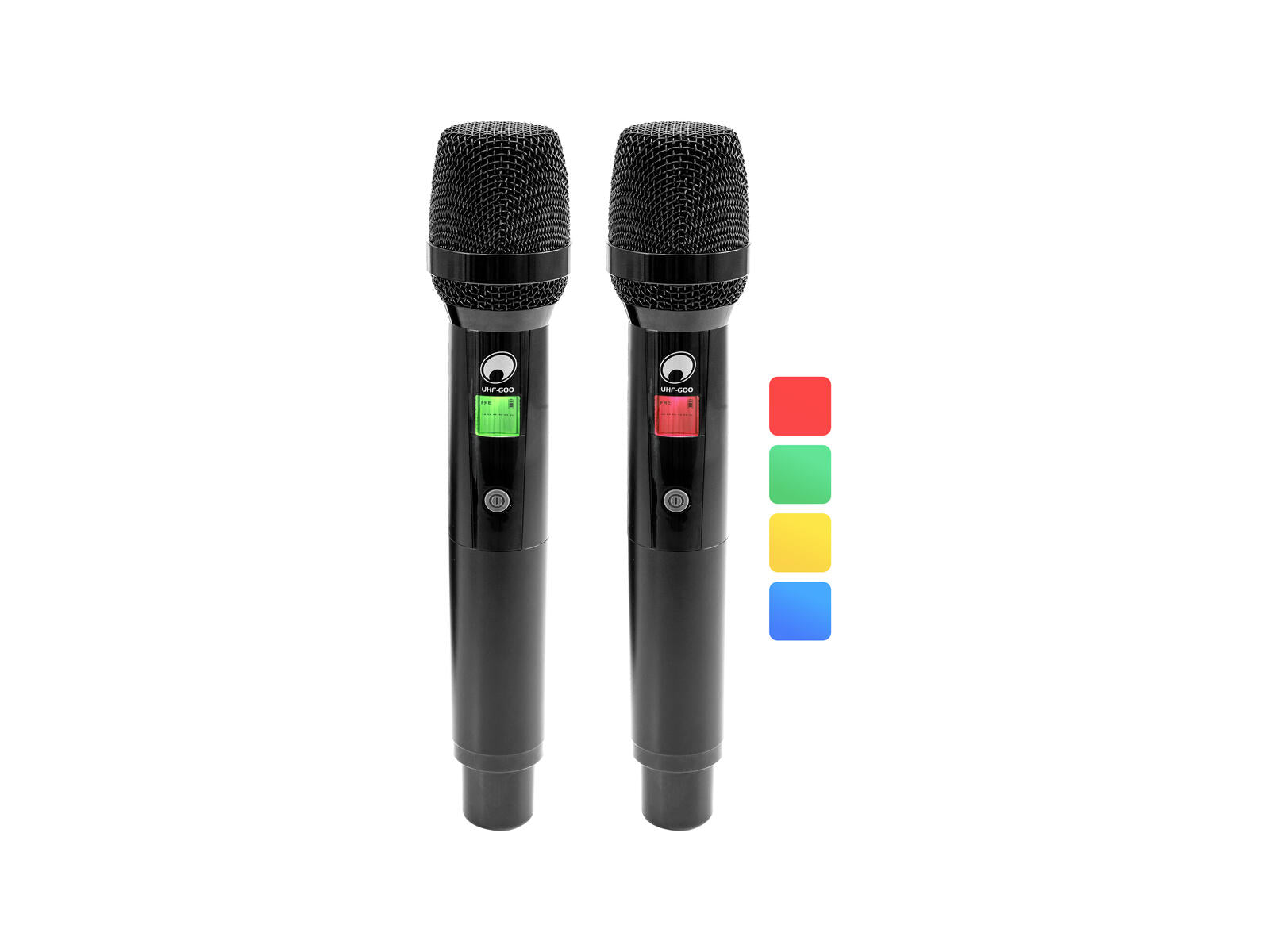

| Microphone Type | Dynamic (Capsule) |
| Microphone Polar Pattern | Cardioid |
| Microphone Battery | 2 x Mignon (AA) (not included) |
| RF Power Output | 10 mW (HI); 5 mW (LO) |
| Microphone Display | Multicolor LCD display (charge status, frequency, Mute, RF level) |
| Microphone Dimensions | Length: 25.9 cm, Diameter: Ø 4.95 cm |
| Microphone Weight | 0.351 kg |
| Receiver Power Supply | 100-240 V AC, 50/60 Hz (via external AC adapter) |
| Receiver Power Consumption | 4.5 W |
