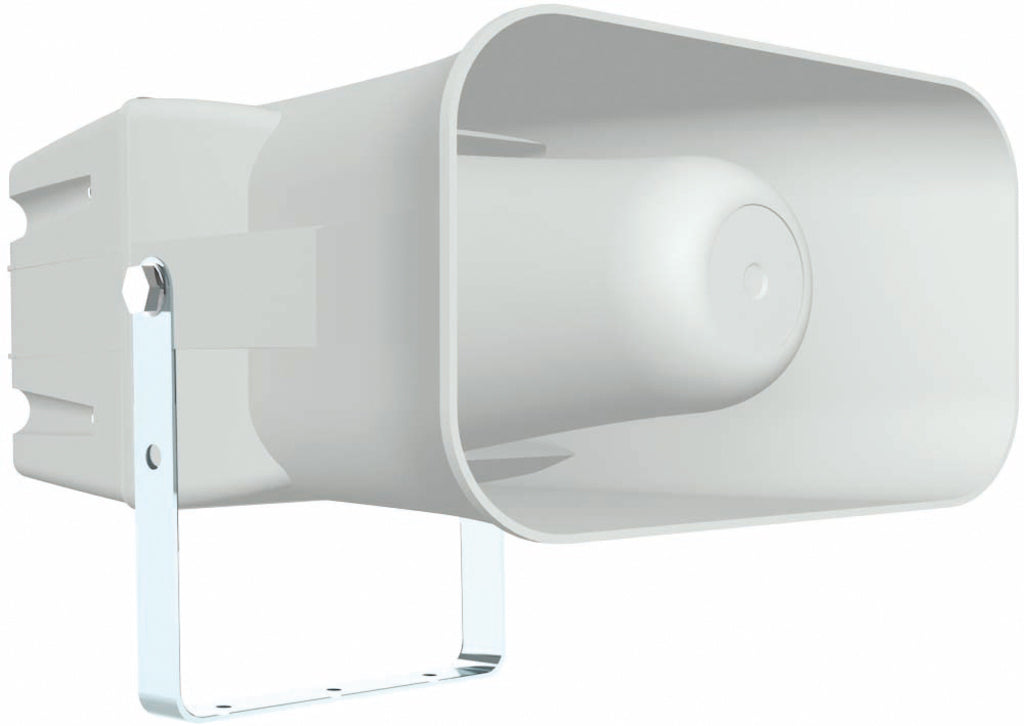

Poschel TR-10-EN Weatherproof horn speaker 100 V line

Poschel TR-10-EN Weatherproof horn speaker 100 V line

RRP

£87.95

inc VAT

£87.95
Sold out
Tax included. Shipping calculated at checkout.
Poschel TR-10-EN Weatherproof horn speaker 100 V line   Weatherproof horn speaker with EN 54-24 certification 100 V transmission technology 100 V transformer with power taps 10/5/2.5 W Integrated high-pass filter...
Vendor: POSCHEL

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

Poschel TR-10-EN Weatherproof horn speaker 100 V line


Weatherproof horn speaker with EN 54-24 certification
  • 100 V transmission technology
  • 100 V transformer with power taps 10/5/2.5 W
  • Integrated high-pass filter for sound and stability optimisation
  • For music and speech applications
  • IP66 certified
  • Light-grey ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Cable feed via PG cable gland
  • Supplied with mounting bracket

Specifications

Active/passive passive
Transmission technology 100 V
Total power rating 10 W
Power rating (RMS) 10/5/2.5 W
Frequency range 350-10,000 Hz
Number of speakers 1
SPL 110 dB (1 W/1 m)

84 dB (EN, 1 W/4 m)
Max. rated SPL 118 dB (1 m)

97.3 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz)

H180°/V180° (1 kHz)

H79°/V119° (2 kHz)

H30°/V44° (4 kHz)
Radiation angle, horizontal 180° (500 Hz)

180° (1 kHz)

79° (2 kHz)

30° (4 kHz)
Radiation angle, vertical 180° (500 Hz)

180° (1 kHz)

119° (2 kHz)

44° (4 kHz)
Features EN 54-24 certification
Housing material ABS
Colour light grey, RAL 7035
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -40 °C to +80 °C
Dimensions 180 x 120 x 230 mm
Width 180 mm
Height 120 mm
Depth 230 mm
Weight 1.8 kg
Inputs M20 cable gland
Other features weatherproof
Packaging dimensions (W x H x L) 0.175 x 0.175 x 0.267 m
Gross weight 1.9 kg
Net weight 1.8 kg
