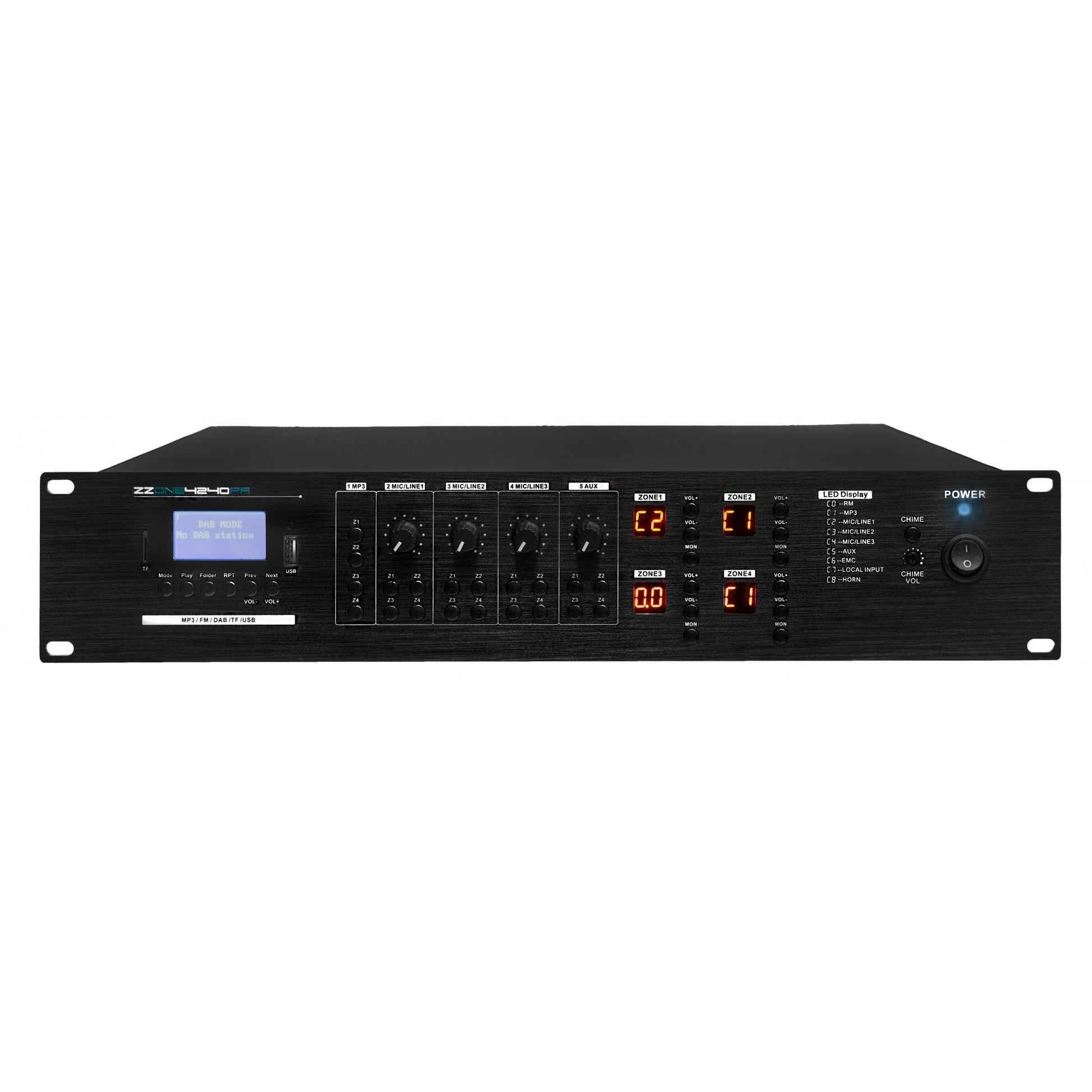

960W Mixer Amplifier for 4 Zones
4 x 240W matrix amplifier/mixer with built-in media player USB + SD card, Bluetooth connectivity, Phantom power, FM + DAB radio.
Integrates 4 amplifiers for 100 V and 8-16 Ω in a single unit, making it suitable as a 4-zone commercial mixer amplifier.
Input priority levels from high to low: Mute, EMC, Mic1, and remote paging microphone over other inputs. Supports up to 6 remote microphones connected to the amplifier via CAT6 cable.
Supports up to 4 remote control panels connected to the amplifier via CAT6 cable. Remote control and 3-meter cable antenna included.
Technical Specifications
Power: 4 x 240 W
Power consumption: 1150 W
3 sources and EMC input matrix distributed across 4 speaker zones
Speaker outputs: 4 zones, 100V and 8–16 Ohm
Inputs: 3 x MIC 10mV; Line 150-470mV, 10 KΩ, unbalanced RCA
Line output: 0.775 (0 dBV)
Integrated audio player matrix
Frequency response: 70-20KHz
Protections: Short circuit, clip, overload, and high-temperature protection
Remote control and antenna included
THD: <0.1%
Signal-to-noise ratio: >80 dB
Power supply: 230 V AC, 50-60 Hz
Phantom power
Remote control included
Dimensions (W x H x D): 48 × 9.4 x 40 cm
Dimensions with antenna (W x H x D): 48 × 9.4 x 44.5 cm
Weight: 7.4 Kg
