How to Install Ceiling Speakers for Perfect Sound

A proper ceiling speaker installation is a game of inches, defined far more by what you do before you cut the first hole than by the installation itself. Rushing the planning stage is a classic rookie mistake, and it's a fast track to poor sound, unexpected snags, and a bill for rework.

Getting it right means taking the time to properly survey the site, understand the room's acoustics, and choose the right speaker technology for the job. This is what separates a professional, reliable system from an amateur one.

Planning Your In-Ceiling Audio System

Meticulous planning is the bedrock of a professional installation. Let's walk through the critical first steps.

Conducting the Site Survey

Before you even glance at a speaker spec sheet, you need to become intimately familiar with the space you're working in. A thorough site survey is about mapping out the unseen—the hidden obstacles lurking in the ceiling void that can derail your entire layout.

Here’s what you’re looking for:

• Joist Direction and Spacing: Grab a stud finder or use the old-fashioned tap test to figure out which way the joists are running and their centre-to-centre measurements. This immediately tells you where you can and can't place a speaker.
• HVAC Ductwork: Big, rigid ducts are common showstoppers. You need to trace their paths to make sure you're not about to cut into one.
• Plumbing and Pipework: Always check for water or waste pipes, especially if there's a bathroom or kitchen on the floor above.
• Existing Electrical Wiring: Map out any lighting circuits, mains cables, or data runs you'll need to work around. Safety first.

Choosing Between Low-Impedance and 100V Line Systems

This is one of your first major technical decisions. The choice between a low-impedance (usually 8-ohm) system and a 100V line system comes down entirely to the job at hand. They are two different tools for two different applications.

Low-impedance systems are your go-to for high-fidelity audio. Think home cinemas, dedicated listening rooms, or high-end multi-room music. They deliver superior sound quality but come with a trade-off: they need thicker speaker cable and a dedicated amplifier channel for every speaker or pair of speakers. This makes them impractical and expensive for covering large areas.

On the other hand, 100V line systems are the undisputed workhorse of commercial audio. They let you connect a huge number of speakers in a chain over very long distances, all powered from a single amplifier and using surprisingly thin cable. This is perfect for background music (BGM) and public address (PA) systems in pubs, restaurants, shops, and offices.

To help you decide at a glance, here’s a quick breakdown:

Low-Impedance vs 100V Line Systems At a Glance

Consideration	Low-Impedance (8Ω)	100V Line System
Best For	High-fidelity audio, home cinema, premium multi-room	Background music, public address, large commercial spaces
Sound Quality	Excellent, full-range dynamic audio	Very good, but optimised for clarity over pure fidelity
Cabling	Requires thicker, low-resistance speaker cable	Uses thinner, more cost-effective two-core cable
Scalability	Limited; requires one amp channel per 1-2 speakers	Highly scalable; many speakers can run off a single amp
Complexity	Simple wiring but complex impedance matching for >2 speakers	Simple parallel wiring ("daisy-chaining")
Cost	Can be more expensive due to amplifier and cable costs	Generally more cost-effective for large installations

While audiophile performance is still the domain of low-impedance systems, don't discount modern 100V line speakers. The sound quality has improved dramatically over the years. For projects needing a blend of quality and discretion, you might find our look at the Sonora-3 install speakers useful.

Ultimately, making the right choice here is fundamental to designing a system that’s both effective and budget-friendly for your client.

Mastering Speaker Placement for Optimal Sound

You can have the best speakers in the world, but if you put them in the wrong place, they’ll sound average at best. Getting speaker placement right is what separates a professional installation from a DIY job. It’s a science, not guesswork, and moving beyond rough estimates to a calculated layout is the only way to guarantee consistent, high-quality coverage across a space. No more dead spots or annoying hotspots.

The whole point is to create a seamless sound field where the audio feels like it's everywhere, rather than coming from obvious points in the ceiling. This just takes a bit of simple maths and a solid understanding of your speaker's capabilities.

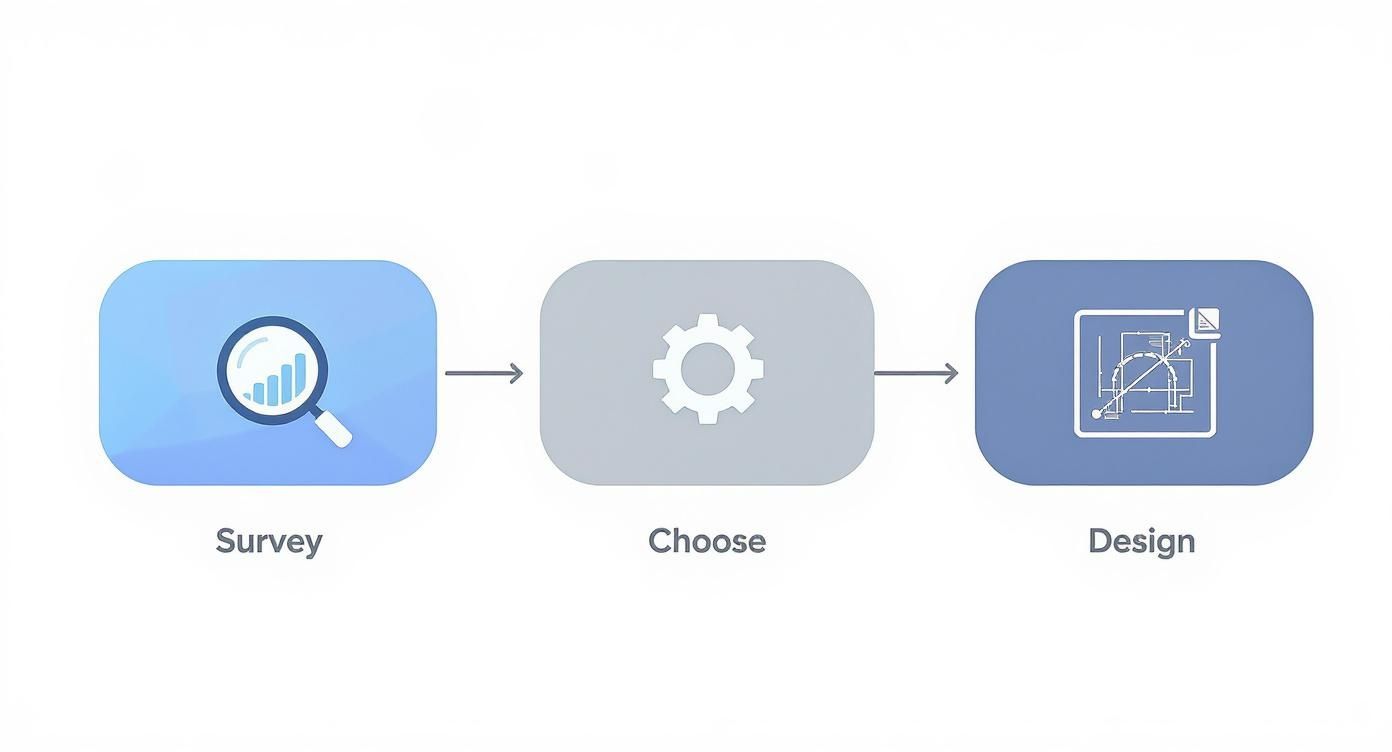

This simple workflow helps visualise the process from the initial site walk to the final design blueprint.

Running through this process ensures your system choice and layout are based on the reality of the site, preventing costly changes down the line.

Calculating Speaker Spacing

The key to perfect spacing boils down to three things: ceiling height, listener ear height, and the speaker’s dispersion angle. The coverage from each speaker depends on its conical dispersion, which is typically around 100 to 120 degrees for most commercial and residential models.

The trick is to calculate the spacing based on the distance from the speaker to the listener's ear, not just the floor. You can see a great technical breakdown of this method in this in-depth guide for installers.

Let’s run a real-world example. Imagine you're fitting out a café with a standard 2.7-metre ceiling. The average ear height for a seated customer is about 1.2 metres.

• First, get the listening height: 2.7m (ceiling) - 1.2m (ear height) = 1.5m. This is your vertical throw distance.
• Next, determine the spacing: For general background music, a solid rule of thumb is to space the speakers between 1.5 and 2 times this listening height. In this café, that means placing speakers roughly 2.25m to 3m apart.
• Finally, position from the walls: You'll want to place your first row of speakers about half that distance from the wall (so, 1.1m to 1.5m) to make sure the perimeter gets even coverage.

Stick to this formula, and you’ll get clear, balanced audio across the entire room.

Designing Layouts for Different Environments

The ideal layout changes completely depending on what the room is used for. What works in a restaurant is totally wrong for a home cinema.

• Retail and Hospitality: For big, open-plan spaces like shops, pubs, or cafes, the name of the game is uniform background music (BGM). A simple grid layout based on the formula above is your best bet. The goal is to have the sound cones from adjacent speakers overlap just slightly at ear level.
• Home Cinema (Dolby Atmos): This is all about precision. For a 5.1.2 Atmos setup, your two overhead speakers need to be positioned just in front of the main seating area, perfectly in line with the front left and right speakers. This creates that focused, immersive bubble of sound.
• Boardrooms and Meeting Spaces: Here, speech intelligibility is everything. You'll want to place speakers directly over the conference table or main seating area to ensure every word of a presentation or video call comes through crystal clear.

A classic mistake is getting the speakers too close to the walls. This creates nasty reflections and a "boomy," muddy bass response, especially in corners. Always leave a sensible gap to keep the sound clean.

Managing Common Acoustic Problems

Even with a perfect layout, the room itself can be your worst enemy. Hard surfaces are the bane of good audio.

Big glass windows, tiled floors, and bare plasterboard walls all reflect sound waves, causing echo and reverb that turn your audio to mush. Here’s how to fight back:

• Speaker Selection: If you're dealing with a lot of glass, choose speakers with a slightly narrower dispersion angle. This lets you aim the sound more precisely, keeping it off those reflective surfaces.
• Acoustic Treatment: You can't always dictate the decor, but suggesting soft furnishings like rugs, heavy curtains, or even proper acoustic panels can work wonders.
• Sound Bleed Prevention: Sound leaking into the room above is a frequent complaint. Using a fire hood or a proper back box not only ticks the safety boxes but also acts as an acoustic barrier, dramatically cutting down on sound leakage.

Think about these acoustic challenges during the design phase, and you’ll deliver a system that sounds fantastic in the real world, not just on paper.

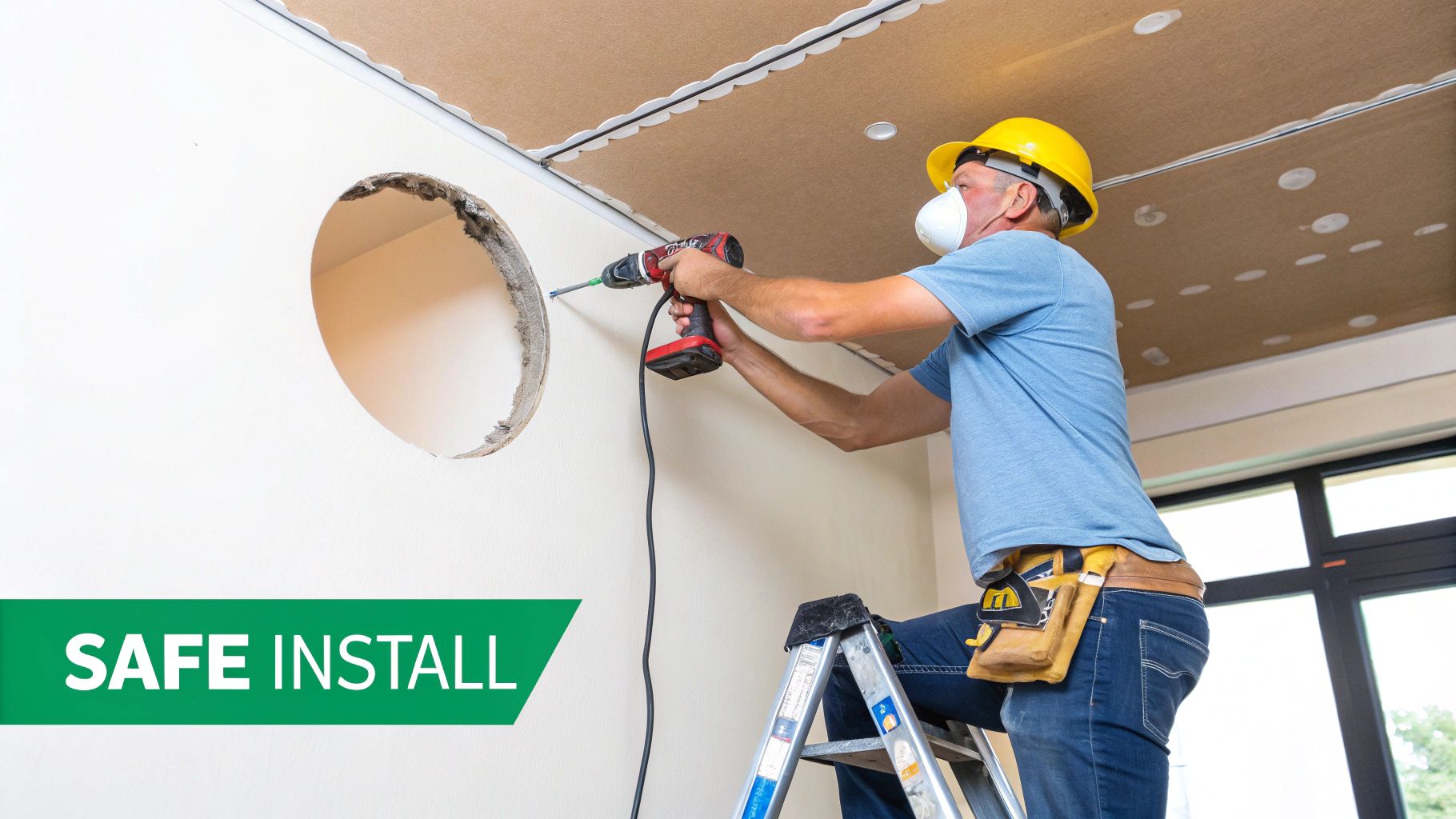

Executing a Clean and Safe Installation

With your layout meticulously planned, it's time to turn your blueprint into reality. This is where precision and a serious commitment to safety come into play. Cutting into a client's ceiling isn't something to take lightly; a clean, accurate job builds trust and leaves a flawless finish.

First up, you need to transfer your paper plan onto the ceiling itself. Most ceiling speakers come with a handy cardboard cutout template. Don't eyeball it. Use the template and a spirit level to make sure your markings are perfectly circular and properly aligned with room features like light fittings or walls.

Before you even think about cutting, do one final check for hidden obstructions. Drill a small pilot hole right in the centre of your marked circle, then poke a piece of bent wire or a small endoscope camera up there. This simple step can save you from the nightmare of hitting an unseen joist, pipe, or cable.

Making the Perfect Cut

When you're absolutely certain the coast is clear, it's time to cut. For this job, a dedicated plasterboard holesaw attached to a cordless drill is the only way to go. It gives you a perfectly round cut in seconds and creates far less dust and mess than wrestling with a traditional jab saw.

A few tips for working with plasterboard and similar materials:

• Set Your Drill Right: Use a low speed with high torque. This stops the saw from binding or jumping all over the place.
• Contain the Dust: Get someone to hold a dust collector or even just a cardboard box up to the ceiling. It'll catch the worst of the plasterboard debris.
• Start Clean: A sharp pilot drill bit is essential. It prevents the drill from wandering as you start the cut.

A clean cut doesn't just look professional—it provides the best possible surface for the speaker's bezel to sit flush against, completely avoiding any ugly gaps.

Prioritising Fire Safety and Compliance

Safety isn't a "nice-to-have"; it's a legal and professional duty. When you install speakers in a ceiling, especially in commercial properties or between floors, you're breaching a fire-rated barrier. You have to take steps to reinstate that fire rating.

In the UK, Building Regulations are crystal clear: any breach of a fire-rated ceiling must be properly fire-stopped. Forgetting to install a fire hood where one is required is a serious compliance failure that can void insurance and, more importantly, put lives at risk.

This is exactly where fire hoods are essential. These intumescent enclosures are fitted over the back of the speaker. If a fire breaks out, the material expands to seal the hole, maintaining the ceiling's fire integrity for its rated period (e.g., 30, 60, or 90 minutes). As a bonus, they also help reduce sound leakage into the room above.

Understanding IC-Rated Speakers

Another critical safety point is insulation. If you're installing speakers into a ceiling void that contains thermal insulation, you must use speakers that are IC-rated (Insulation Contact rated).

IC-rated speakers are specifically designed so they can be safely covered with insulation without creating a fire hazard from overheating. Using a non-IC-rated speaker in this scenario is a massive fire risk. Always, always check the speaker's spec sheet before installing into an insulated ceiling.

Securing the Speaker for a Rattle-Free Fit

With the hole cut and your safety measures in place, the final step is mounting the speaker. Most ceiling speakers use a "dog-leg" or "dog-ear" clamp system. As you tighten the screws on the front baffle, these clamps flip out and grip the back of the plasterboard.

To get a secure, flush fit and kill any potential vibrations:

• Hand-Tighten to Finish: Use a manual screwdriver for the last few turns. It's too easy to over-tighten with a power drill, which can warp the speaker's bezel or crack the plasterboard.
• Apply Even Pressure: Tighten the screws bit by bit in a star pattern, just like you would with a car wheel. This ensures the clamps engage evenly.
• Check the Fit: Once it's in, give the speaker grille and bezel a gentle press. There should be zero movement or rattling.

A properly secured speaker doesn't just sound better, it also blends seamlessly into the ceiling, giving you that clean, architectural finish clients pay for.

Wiring and Integrating Your Speaker System

With the speakers physically mounted, it's time to bring your audio system to life. This is the crucial stage where meticulous wiring and smart integration separate a jumble of components from a cohesive, reliable audio solution. Don't underestimate this part; the quality of your cabling and connections is the invisible foundation that dictates the system's performance for years to come.

This process is about more than just plugging things in. It’s about planning clean cable routes, picking the right materials for the job, and ensuring every single connection is rock-solid. A single poor termination can compromise an entire audio zone, leading to frustrating callbacks and hours of troubleshooting down the line.

Choosing and Running Speaker Cable

First up, you need to select the right speaker cable. The correct gauge (its thickness) is critical for preventing signal loss, especially over the longer distances you find in low-impedance systems.

• For runs under 15 metres: A 16-gauge (1.5mm²) two-core speaker cable is usually perfectly fine for most residential and small commercial jobs.
• For runs between 15 and 30 metres: It’s best practice to step up to a 14-gauge (2.5mm²) cable. This helps minimise power loss and ensures the amplifier maintains proper control over the speaker cone.
• For 100V line systems: Thanks to the higher voltage and lower current, you can often get away with a thinner cable over much greater distances. That said, it's still crucial to calculate the potential voltage drop on very long runs to avoid any nasty performance surprises.

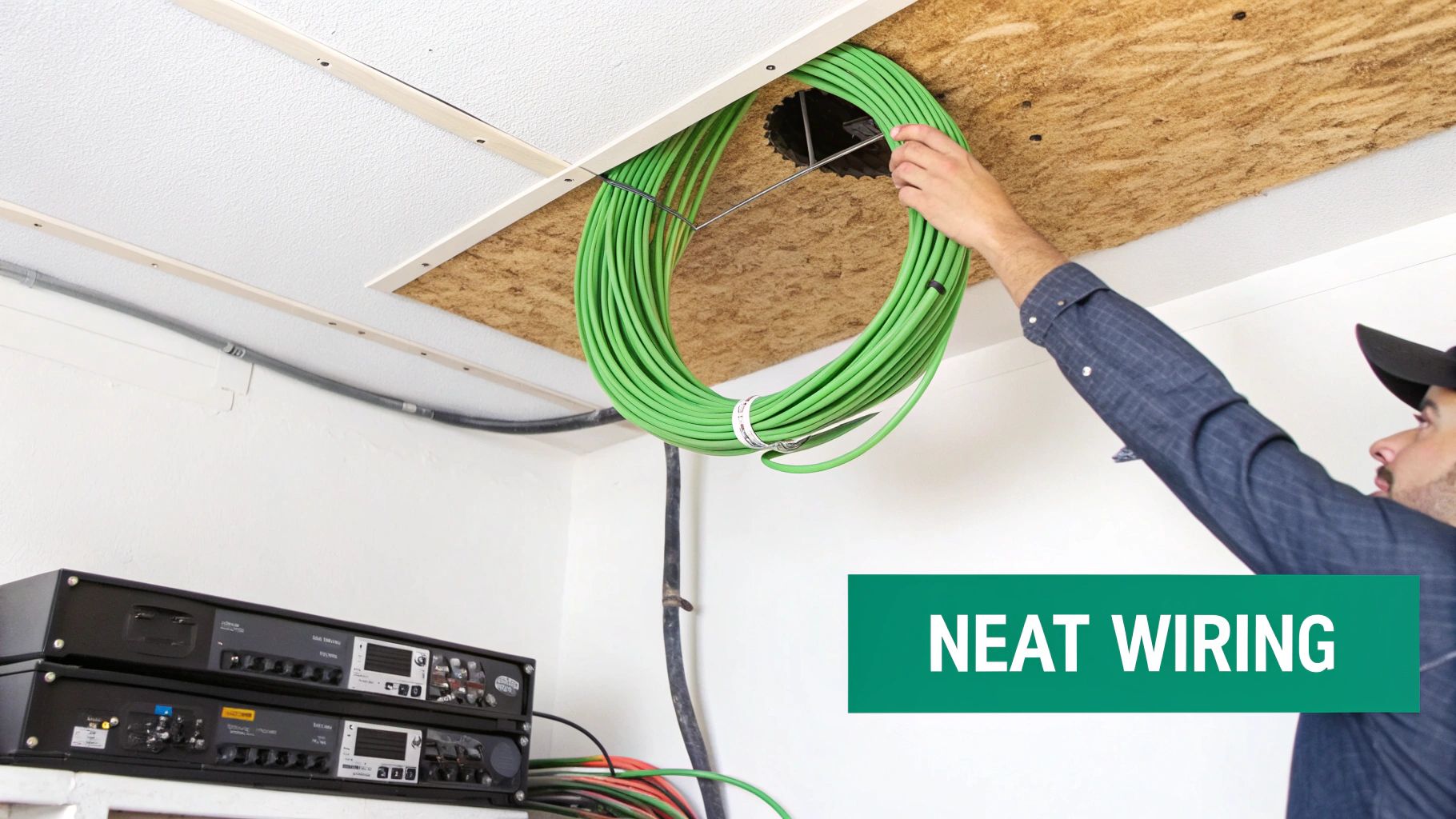

When you're running cables through ceiling voids, always prioritise clean, organised routes. Try to avoid kinking the cable or running it parallel to mains power lines for long stretches, as this is a classic recipe for introducing unwanted noise and hum into the system. Get them secured with clips to stop them from sagging or getting snagged by the next tradesperson on site.

A pro tip we swear by: always leave a small service loop of extra cable at both the speaker and the amplifier end. That little bit of slack can be an absolute lifesaver if a speaker needs replacing or a connection has to be re-terminated in the future.

Terminating and Connecting to the Amplifier

Once your cables are pulled, the next job is termination. For most ceiling speakers, this means connecting the bare wire ends to the spring-loaded or screw-down terminals on the back of the unit. Make absolutely sure you maintain correct polarity (positive to positive, negative to negative) for every single speaker in a zone. Get it wrong, and you’ll get phase cancellation, resulting in a thin, weak sound with virtually no bass.

At the amplifier end, neatness is everything. Label every cable clearly so you know exactly which zone it corresponds to—this is non-negotiable for multi-zone installations. Using banana plugs or spade connectors to terminate the cables can provide a much more secure and professional connection to the amplifier's binding posts than just using bare wire.

Connecting your speakers to the right amp is vital for both performance and safety. For larger installations, you should be looking at professional-grade options. You can learn more about the features of modern install amplifiers like the Prox series, which are designed specifically for these kinds of multi-speaker setups.

Integrating with Audio Matrixes and Control Systems

For projects with multiple audio zones—think a restaurant with separate music for the bar, dining area, and outdoor patio—a simple amplifier just won't cut it. This is where an audio matrix switcher comes into its own. A matrix lets you route different audio sources to different zones independently, giving the end-user total control over their environment.

Advanced Integration with Networked Audio

The industry is increasingly shifting towards Audio over IP (AoIP) solutions, and Dante is the undisputed leader in this space. Dante allows you to send hundreds of channels of uncompressed, low-latency audio over a standard computer network.

This technology dramatically simplifies the wiring for complex, large-scale installations. Instead of pulling endless individual speaker cables back to a central rack, you can run a single network cable to a Dante-enabled amplifier or endpoint located in each zone. This approach offers incredible flexibility and scalability, and it makes system management so much easier. It's an ideal choice for large venues, corporate offices, and educational campuses.

Testing and Commissioning for Flawless Audio

So, the final speaker is in the ceiling and the last cable is neatly terminated. But you're not done yet. The testing and commissioning stage is what separates a decent installation from a truly professional one. Think of it as your final, critical quality check—your last chance to catch any gremlins before you hand the system over to the client.

Trying to save time by skipping this is a classic false economy. A few minutes of structured checks right now will save you from hours of painful troubleshooting and expensive callbacks down the line. This is where you confirm that every single component is pulling its weight exactly as it should, from the speaker drivers right back to the amplifier.

Initial System Checks

Before a single note of music plays, there are a few fundamental checks you need to run through. With the system powered down, head over to the amplifier rack. The aim here is to double-check the electrical integrity of your speaker lines before you dare send any power down them.

First up, verify the impedance load for each zone. Grab your multimeter and measure the resistance across the speaker terminals for every amplifier channel. It’s a quick test that instantly tells you if your wiring is sound and helps you spot potential showstoppers like a short circuit or an incorrectly tapped speaker on a 100V line system.

Next, it’s polarity time. A simple polarity checker is a cheap but absolutely indispensable bit of kit. Sending a pulse down the line confirms that every speaker is wired in phase—positive to positive, negative to negative. Get this wrong, and you'll have speakers fighting each other, resulting in a thin sound with no low-end punch. It's an easy fix now but a real headache to diagnose once the ceiling tiles are all back in place.

Audio Performance Verification

With the electricals signed off, it’s time for the fun part: listening. This is where your ears become the most important tool.

Start by running test tones through each zone one by one, including a full frequency sweep from low to high. This is fantastic for hunting down any annoying rattles or vibrations caused by a loose fitting, an unsecured cable, or even a rattling ceiling grid. Walk the room and listen carefully from different spots to make sure the audio coverage is even and completely free of distortion.

The real acid test is playing a piece of music you know inside and out, something well-recorded. Your ears are finely tuned instruments. If something doesn't sound quite right to you, it definitely won’t to the client. Trust your gut and make those final tweaks.

Setting Gain Structure and DSP

Getting the system's gain structure right is absolutely fundamental for clean, powerful audio. Start with all the amplifier gains wound right down. Play a source at its normal operating level (often called 'unity gain') and then slowly bring up the amp gain until you hit the maximum volume you want for that zone. This is the pro way to prevent clipping, which protects both the amplifier and the speakers.

On more sophisticated installs, now is the time to apply some basic Digital Signal Processing (DSP). A little bit of equalisation (EQ) can work wonders on tricky room acoustics—maybe taming some boominess in a space with lots of glass or adding a touch of presence for better speech clarity.

On high-end projects, this could involve networked audio systems. For example, integrating a Dante microphone array system into a boardroom demands precise DSP settings to get the echo cancellation and intelligibility just right.

The Client Handover

The last—and arguably most crucial—step is handing the system over to the client. A brilliant system is useless if the end-user can't operate it confidently.

Take the time to walk them through the controls. Show them how to select different sources, adjust volume levels in each zone, and use any special features you've configured.

Leave them with simple, clear documentation. A single, laminated A4 guide left next to the controller is infinitely more useful than a hefty binder full of technical manuals they'll never open. When you empower the client, you drastically cut down on future support calls and leave them feeling completely satisfied with their new, professionally commissioned system.

Common Questions from the Field

Even the most meticulously planned installation can hit a snag. Whether it’s an unexpected obstruction in the ceiling void or a last-minute change from the client, knowing how to handle common challenges is what separates the pros from the amateurs. Let's run through some of the questions that crop up time and time again when installing ceiling speakers.

Getting these right isn't just about fixing a problem; it's about upholding best practices. It’s what ensures the final system is safe, compliant, and sounds absolutely spot-on. Having this knowledge at your fingertips lets you advise clients with real authority and swerve those costly on-site mistakes.

What’s the Right Speaker Spacing for Even Coverage?

There’s no single measurement that works for every room. The ideal spacing is a direct result of the ceiling height and the speaker's dispersion angle. Thankfully, there’s a reliable formula that gets you in the perfect ballpark every time.

First, you need the listening height. Simply subtract the average ear height from the ceiling height. Imagine a restaurant with a 3m ceiling where most customers are seated (ear height around 1.2m). That gives you a listening height of 1.8 metres.

For general background music systems where smooth, even coverage is the goal, a good rule of thumb is to space your speakers at 1.5 to 2 times that listening height. In our restaurant scenario, that means placing speakers between 2.7m and 3.6m apart. For applications that demand more focused audio, like a dedicated home cinema, you’d tighten that ratio right up, getting much closer to a 1:1 spacing.

Do I Really Need a Fire Hood on Every Speaker?

In the UK, if you are cutting into a fire-rated ceiling, the answer is an unequivocal yes. This is standard procedure in almost all commercial buildings and between the floors of multi-storey homes. Building Regulations are crystal clear: the integrity of any fire-rated barrier must be maintained after you’ve made a hole in it.

A proper, acoustically rated fire hood is the only correct way to do this. It’s designed to restore the ceiling's fire rating for the required time (30, 60, or 90 minutes), but it also brings a couple of other major benefits to the job:

• Acoustic Damping: It dramatically cuts down on sound bleeding into the room above.
• Speaker Protection: It acts as a shield, protecting the speaker’s driver and electronics from dust, insulation fibres, and other debris in the ceiling void.

If the ceiling isn't fire-rated—say, a top floor with an open loft space above—then a fire hood isn't legally required. However, it's still considered best practice for its acoustic and protective advantages.

Can I Mix and Match Different Speaker Brands?

Technically, you can wire them together, but mixing different speaker brands or even different models from the same manufacturer within a single audio zone is a bad idea. Every speaker is engineered with a unique sonic character, or 'voicing'.

When you mix different voicings, you end up with a messy, inconsistent soundscape. As you walk through the room, the audio character can change completely. You'll find one spot sounds thin and tinny, while a few feet away it’s muddy and boomy. This completely defeats the purpose of creating a seamless, high-quality audio experience.

For a professional, cohesive system, always stick with the same manufacturer and, ideally, the same series of speakers for the entire project. This guarantees a consistent and predictable performance from one room to the next—which is exactly what your client is paying for.

What Gauge Speaker Cable Should I Use?

Choosing the right speaker cable thickness, or gauge, comes down to two things: the length of your cable run and the system's impedance. If the cable is too thin for the distance, you'll get power loss (insertion loss), which audibly degrades the sound quality.

For standard low-impedance (8-ohm) systems, these are the professional guidelines to follow:

• Runs under 15 metres: 16-gauge (1.5mm²) cable will do the job perfectly.
• Runs between 15-30 metres: You’ll want to step up to 14-gauge (2.5mm²) to prevent audible power loss.
• Very long runs over 30 metres: It’s wise to use 12-gauge (4mm²) cable to ensure the amplifier maintains tight control over the speaker driver.

For 100V line systems, things are a bit different. The higher voltage means lower current, which allows you to use thinner cable over much longer distances without the same performance drop. That said, on very large-scale jobs, you still need to calculate the total speaker load and potential voltage drop to make sure the speakers at the end of the line are getting enough power.

---
