A Guide to Pro PA Speaker Systems

A professional PA speaker system is so much more than a collection of loudspeakers. It's a complete audio ecosystem, meticulously designed to deliver clear, reliable sound across a specific space. Unlike the hi-fi system in your living room, these systems are engineered from the ground up for intelligibility and coverage, making sure every announcement, safety alert, or piece of background music is heard perfectly.

Your Guide to Professional PA Speaker Systems

Think of a professional PA system as the central nervous system for a building's communications. It’s not just about turning up the volume; it’s about delivering the right sound to the right place with absolute clarity. This might mean gentle background music in a hotel lobby, crisp announcements in a bustling train station, or critical evacuation instructions during an emergency.

Every single component, from the microphone picking up a voice to the amplifier powering the signal and the speakers dispersing the sound, has to work together in perfect harmony. For AV integrators and venue managers, getting to grips with this ecosystem is the secret to designing and installing a system that meets both the functional brief and crucial safety standards.

From Public Gatherings to Modern Venues

The need to make sound carry over large areas is nothing new, but public address technology has come a long way. Back in the 1920s, the British telecommunications firm Marconi was a key player in developing systems for public communication. One of their landmark moments came in 1925, when a Marconi PA system using just six horn loudspeakers allowed King George V to address a crowd of 90,000 people at the British Empire Exhibition. You can get more insights into this historic event on Wikipedia.

Today’s systems are infinitely more complex, but the fundamental goal hasn't changed: ensuring every person in a defined space can hear clearly. A properly designed PA system has to account for every variable in its environment.

A professional installation is all about precision. It delivers intelligible audio that cuts through background noise, provides consistent coverage without loud 'hot spots' or quiet 'dead zones', and just works reliably, day in and day out.

The Professional Difference

For any integrator, the distinction between consumer-grade kit and professional pa speaker systems is night and day. Pro systems are built for durability, scalability, and seamless integration with other building systems, like fire alarms.

Key characteristics include:

• System Integration: They are designed to hook into mixers, audio matrices, and dedicated voice alarm controllers.
• Durability and Reliability: Every component is specified for continuous operation, often 24/7, in demanding commercial environments.
• Coverage and Control: Professional speakers offer predictable dispersion patterns, allowing for precise audio mapping across different zones.

This guide will walk you through everything you need to know about designing, specifying, and installing these essential systems.

Choosing the Right Speaker for Any Space

Picking the right speaker for a commercial space is a lot like choosing the right tool for a job. You wouldn't use a sledgehammer to hang a picture frame. In the same way, the speaker that’s perfect for a concert hall is completely wrong for a quiet hotel lobby. Every speaker type is engineered for a specific purpose, defined by its physical design and how it projects sound.

Getting this right is the foundation of any effective pa speaker system. The whole point is to deliver clear, intelligible audio that suits both the function and the look of the environment. This means matching the speaker's dispersion—how it spreads sound—to the unique challenges of the space, whether that's a cavernous warehouse or an intimate restaurant.

Get it wrong, and you end up with patchy coverage, muffled sound, or just an ugly box on the wall. Get it right, and the speaker just disappears, doing its job perfectly without anyone even noticing it’s there.

Ceiling Speakers for Even Coverage

Ceiling speakers are the absolute workhorses of background music (BGM) and general announcement systems. They’re designed to be discreet, installing flush into ceiling tiles or plasterboard for a clean look that keeps architects and interior designers happy.

Their biggest strength is creating a wide, even field of sound. Think of them as audio downlights, casting cones of sound instead of light. By spacing multiple speakers out correctly, you get consistent volume and clarity across a huge area, getting rid of the "loud spots" and "dead zones" you often find with a few powerful, wall-mounted speakers.

This makes them the perfect fit for places where you want audio to be present but not in your face.

• Retail Stores: They create a welcoming atmosphere with seamless background music.
• Offices: Ideal for gentle BGM and clear, non-disruptive paging.
• Hotel Lobbies and Corridors: Provide continuous, even audio for ambience and announcements.

Surface-Mount Wall Speakers for Focused Sound

When you can't install speakers in the ceiling, or when you need to aim the sound more deliberately, surface-mount speakers are your go-to. These are basically compact cabinet speakers that bolt onto walls or pillars with a bracket, letting you point the sound exactly where it needs to go.

They usually deliver a fuller, richer sound than standard ceiling speakers, making them a much better choice for foreground music or anywhere you need a bit more punch. In a lively pub, for example, a couple of well-placed wall speakers can blast energetic music to the bar area without deafening people trying to eat in the next room.

The real advantage of a surface-mount speaker is control. You can direct the sound straight at the audience and keep it away from reflective surfaces like big glass windows or high ceilings. That means better clarity and less of that muddy, echoing sound.

Column and Line Array Speakers for Challenging Acoustics

Let’s talk about acoustically difficult spaces: think churches, train station platforms, or massive atriums with high ceilings and lots of hard, reflective surfaces. These places are an absolute nightmare for reverb, where sound waves bounce all over the place, turning speech into an unintelligible mess. This is where column speakers really come into their own.

By stacking lots of small speaker drivers in a vertical line, column speakers produce a very tight vertical dispersion but a wide horizontal one. Picture the sound leaving the speaker in a wide, flat ribbon. It fires the audio directly at the listeners' ears and stops it from splashing off the floor and ceiling, which dramatically improves speech clarity.

For even bigger venues like arenas or outdoor festivals, line array speakers take this idea to a whole new level. These are the huge, curved stacks of speakers you see hanging at concerts. By fine-tuning the angle between each box, engineers can shape the sound to cover massive crowds with incredible power and precision.

Horn Speakers for Maximum Projection

When you just need to be heard, loud and clear, over long distances or through a racket of background noise, nothing beats a horn speaker. They are incredibly efficient, turning a tiny amount of amplifier power into a seriously high sound pressure level (SPL).

You’ll see them everywhere in:

• Industrial environments like factories and warehouses.
• Outdoor spaces such as car parks and sports fields.
• Public transport hubs like railway stations and airports.

They aren't built for high-fidelity music, but their sharp, penetrating sound is perfect for making sure critical safety announcements and public information are heard, no matter what else is going on. Their tough, weatherproof build also makes them a solid choice for any outdoor installation.

To help put all this into perspective, here’s a quick guide to choosing the right speaker for the job.

Speaker Type Application Guide

This table breaks down the most common PA speaker types, showing where they work best and what to expect from their performance.

Speaker Type	Best For	Dispersion Pattern	Common Venues
Ceiling Speakers	Background music & general announcements	Wide, conical	Offices, retail stores, hotels, restaurants
Surface-Mount Wall	Foreground music & directional audio	Controlled, directional (aimable)	Bars, pubs, gyms, small performance spaces
Column Speakers	High speech intelligibility in reverberant spaces	Wide horizontal, very narrow vertical	Churches, atriums, train stations, conference halls
Line Array Speakers	Large-scale sound reinforcement	Highly controlled, long-throw	Arenas, concert halls, festivals, large auditoriums
Horn Speakers	Long-distance voice projection & high noise	Narrow, highly focused	Factories, car parks, stadiums, transport hubs

Each type has its place, and understanding these differences is key to designing a system that not only works but sounds great.

The Core Components Driving Your System

While the speakers are the most visible part of any PA system, the real magic happens behind the scenes, often tucked away in a rack. The electronic components—the mixer, amplifier, and Digital Signal Processor (DSP)—are the true heart of your setup. They take the raw audio signals and transform them into the clear, powerful sound that fills a room. Without these core drivers, even the world's best speakers are just silent boxes.

A great way to understand how they work together is to picture a professional sound kitchen. Each component plays a very specific role in preparing and delivering the final audio "dish" to your audience.

The Mixer: The Audio Chef

The mixer is the head chef in our sound kitchen. Its job is to grab all the individual audio "ingredients"—from microphones and music players to laptop outputs—and skilfully combine them into a single, balanced recipe. Just as a chef carefully adjusts the amount of salt and spice, an audio engineer uses the mixer's faders and knobs to control the volume and tone of every input.

This is what ensures a presenter's voice cuts through background music, or that multiple microphones in a conference room are all at a consistent, comfortable level. The mixer is where the fundamental audio balancing act takes place.

The DSP: The Master of Flavour and Flow

Once the mixer has combined the basic ingredients, the Digital Signal Processor (DSP) steps in. This is where the sound is refined and told where to go. A modern DSP is an incredibly powerful tool that can surgically shape the audio to perfectly match the acoustic properties of any room.

Think of it as the kitchen's expert sous-chef and food critic all rolled into one. It handles several critical tasks:

• Equalisation (EQ): The DSP tweaks specific frequencies to correct a room's acoustic flaws. It might cut some boomy bass in a small, square room or boost vocal clarity in a large, echoing hall.
• Routing and Zoning: It's an intelligent traffic controller, sending the right audio to the right speakers. This is how you can play different music in a hotel bar and lobby, all from the same system.
• Dynamics Processing: Tools like compressors and limiters prevent sudden loud noises from damaging speakers or startling listeners. They keep the output smooth and controlled.

In short, the DSP optimises the audio signal, making sure it’s perfectly seasoned and sent to the correct destination before it even thinks about hitting the amplifier.

The Amplifier: The Powerhouse

The amplifier is the final, crucial stage in our sound kitchen—it’s the oven that provides the raw power to "cook" the sound. The refined, line-level signal coming from the mixer or DSP is far too weak to drive a speaker on its own. The amplifier takes this delicate signal and gives it a massive boost of electrical power, enough to physically move the speaker cones and create sound waves.

The amount of power needed depends entirely on the venue size and the number of speakers. Underpowering your speakers will lead to distorted, poor-quality audio. Overpowering them can cause permanent damage. Matching the amplifier's output to the speakers' requirements is a fundamental part of designing effective PA speaker systems.

A system is only as strong as its weakest link. A high-end speaker will sound terrible if it's fed by a poor-quality signal from the mixer or an underpowered amplifier. Every component must be chosen to work in harmony.

The Shift to Audio over IP (AoIP)

Traditionally, connecting all these components meant a messy web of analogue audio cables, where every connection was a potential point of failure or signal degradation. Today, the industry is rapidly moving towards Audio over IP (AoIP) solutions, and Dante is the leading protocol.

AoIP sends dozens of high-quality audio channels over a single, standard network cable. For installers and integrators, this is a complete game-changer, offering huge benefits in flexibility, scalability, and simplified wiring. For a deeper dive, you can explore our complete guide to Dante Audio over IP solutions.

This networking approach is the latest chapter in the industry's constant push for more power and flexibility. The development of PA systems in the United Kingdom, for instance, was a major turning point. Pioneers like Kelsey-Morris created some of the first commercially available systems in Britain, and by 1967, Watkins had unveiled a system generating a staggering 1,000 watts—a massive amount of power for the time. You can learn more about this period of rapid growth in the history of British PA systems.

Designing for Performance with SPL Calculations

Designing a professional PA speaker system isn't about guesswork; it's a science. The entire goal is to make sure every word and every note is heard with absolute clarity, which means the audio has to be loud enough to cut through the room's background noise. This is where Sound Pressure Level (SPL) calculations become an installer's most important tool.

Put simply, SPL is just a measurement of how loud a sound is at a specific location, measured in decibels (dB). A properly engineered system has to deliver a target SPL that gives you fantastic intelligibility without being painfully loud. This whole process starts long before a single speaker gets mounted.

The very first step is always a thorough site survey. This means getting in there and measuring the ambient noise floor of the venue while it's operating normally. A busy restaurant with clattering plates and constant chatter might have an ambient noise level of 65-75 dB, whereas a quiet art gallery could be as low as 40 dB.

The Science of Sound Coverage

To get clear speech, the audio from your pa speaker systems generally needs to be at least 10-15 dB louder than that background noise. For background music, a smaller margin of 3-6 dB is usually enough. This target level is the bedrock of your entire system design.

Once you know your target SPL, the next puzzle is figuring out how sound behaves over distance. This is governed by a fundamental principle of physics known as the inverse square law.

The inverse square law states that for every doubling of the distance from a sound source, the sound pressure level will drop by approximately 6 dB. This is a critical, non-negotiable factor in every audio installation.

This predictable drop-off in volume directly impacts where you place your speakers and how much power you'll need to drive them. A speaker that kicks out a powerful 95 dB at one metre will only deliver around 89 dB at two metres, and a much weaker 83 dB at four metres. If you don't account for this, you’ll end up with poor coverage and muddled audio in large parts of the venue.

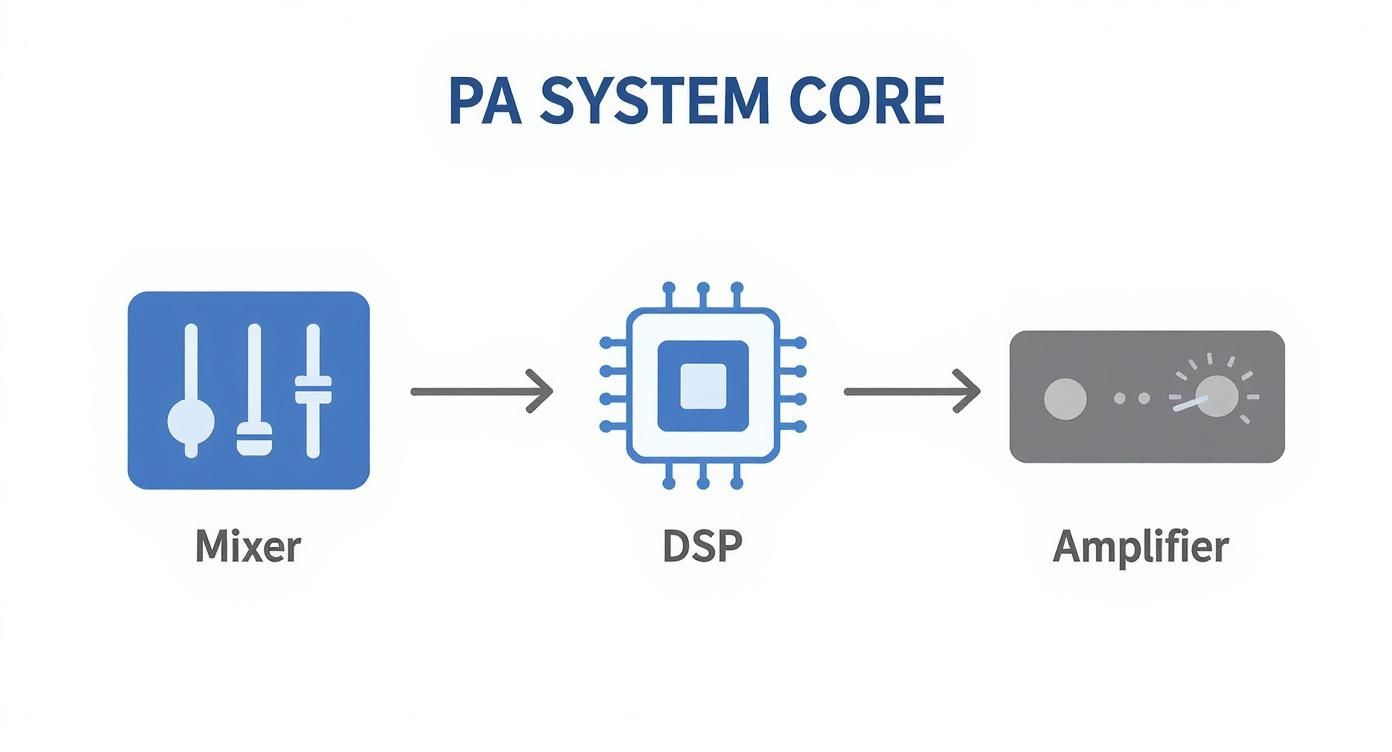

This diagram shows the basic signal path that powers every PA system, from the initial sound source right through to the final amplification stage. Getting your head around this flow is key for troubleshooting and making sure each component is correctly specified to work with the others for the best possible performance.

Choosing Your System Architecture

The physical layout and sheer scale of your installation will also dictate whether you go for a 100V line or a low-impedance system. Each has its own distinct advantages for different jobs.

• Low-Impedance Systems (4-16Ω): Think of these like the hi-fi systems you'd have at home. They deliver fantastic audio quality and are perfect for smaller setups where the speakers are close to the amplifier—a single room, a small bar, or a compact retail space, for instance. Their main limitation is that the speaker cable runs have to be kept pretty short to avoid power loss.

• 100V Line Systems: This is the go-to standard for most large-scale commercial installations. The system uses a special amplifier and transformers to send audio at a high voltage (100V) over very long distances with minimal power loss. This clever setup allows you to connect a huge number of speakers in parallel on a single cable run, making it ideal for sprawling venues.

Here’s a practical breakdown of when to choose each:

System Type	Ideal Use Case	Key Advantage
Low-Impedance	Small, single-zone venues (e.g., small pub)	Higher audio fidelity for foreground music
100V Line	Large, multi-zone venues (e.g., hotel, school)	Efficient power distribution over long distances

Ultimately, combining solid SPL calculations with the right system architecture is the secret to designing a pa speaker system that performs flawlessly. By measuring the environment, understanding the physics of sound, and selecting the appropriate technology, you can guarantee a reliable, high-quality result for any client.

Getting Clever with Zoning and Voice Alarm Systems

Great sound is one thing, but controlling where that sound goes and what it does in an emergency is where a modern PA system truly shows its power. This isn't just about turning the volume up or down. We're talking about two distinct but related capabilities: flexible audio zoning for day-to-day use, and life-or-death voice alarm systems for emergencies. If you're working in public or commercial buildings, you need to get your head around both.

At its most basic, zoning is about carving a building up into different audio areas. You can then send different music, announcements, or any other audio feed to each specific zone.

Picture a hotel. With a zoned system, you could have calming, ambient music wafting through the spa, a high-energy playlist pumping in the gym, and live sports commentary keeping punters happy in the bar. And it’s all controlled from one central point.

The brains behind this operation is usually an audio matrix or a multi-zone mixing amplifier. Think of it as an intelligent telephone exchange for audio. It takes all your inputs – music players, microphones, TV feeds – and routes them to the right amplifier channels, which in turn feed the speakers in each zone.

The Power of Zoned Audio Control

Done right, zoning gives a venue manager an incredible amount of control. It’s all about tailoring the atmosphere of each space to fit its exact purpose and the people in it.

A well-designed multi-zone system can deliver:

• Targeted Paging: Need to call a staff member to the stockroom? You can make the announcement only in the staff areas, leaving shoppers undisturbed.
• Independent Volume Control: The background music in a quiet restaurant corner can be kept subtle, while the volume in the buzzing bar area is cranked up.
• Varied Content: A conference centre can run multiple events at the same time, giving each room its own dedicated audio for presentations and music.

To see what the hardware looks like in the real world, a piece of kit like a 4-zone multifunctional mixing amplifier is a fantastic solution for smaller venues needing this kind of granular control.

Voice Alarm and EN54 Compliance

While zoning makes daily life better, its most critical job is in life safety. A Voice Alarm (VA) system is a specialised PA system, built from the ground up to help people evacuate a building safely and calmly during an emergency like a fire.

Now, this is important: in the UK, if a building requires a VA system, it must comply with the BS EN 54-16 standard. That’s not a friendly suggestion – it’s a legal requirement.

An EN54-compliant system is a world away from a standard PA rig. It's built with layer upon layer of redundancy and constantly monitors itself for faults, all to ensure it works perfectly when everything else is going wrong.

EN54-16 is serious business. It demands that the entire audio chain, from the emergency microphone right down to the last speaker, is constantly checked for faults. The system has to be smart enough to automatically switch over to backup amplifiers and power supplies, and it must tell the building managers the instant something goes wrong.

Key parts of an EN54-16 system include:

• Full System Supervision: It's always watching. The system monitors amplifiers, speaker lines (looking for short circuits or breaks), and its own power sources.
• Battery Backup: If the mains power goes out, the system must keep running flawlessly on a backup power source for a legally specified amount of time.
• Certified Components: You can't just use any old bit of kit. The main controller, amplifiers, and even the speakers must be independently tested and certified to the EN54 standards.
• Priority Management: When an emergency message is triggered, it has to override everything else – background music, general announcements, you name it – without fail.

The drive for powerful, clear audio in emergencies has pushed PA technology forward for decades. A classic example from British music history happened back in 1964. The Beatles' gear was completely swamped by the sound of 42,000 screaming fans, hitting an estimated 135 decibels. It was a stark lesson in the need for systems with serious muscle – a principle that directly influences the high-SPL demands of today's life safety systems. You can read more about this key moment in British PA history.

Installation Best Practices and Troubleshooting

You can design the most incredible pa speaker system on paper, but it all counts for nothing if the installation is sloppy. The final stage—when the plans meet the real world of dusty ceiling voids and awkward cable runs—is where a system truly comes to life. It’s the attention to detail at this point that makes the difference between a reliable, crystal-clear setup and one that’s a constant source of callbacks and client frustration.

A bulletproof installation really boils down to three key things: clean cabling, secure mounting, and smart equipment placement. Get these right, and you're building a system that’s not just functional, but safe and built to last for years.

Mastering the Installation Fundamentals

A thoughtful installation is more than just connecting the dots; it's about anticipating problems and building in reliability from the ground up.

• Cabling Discipline: This is non-negotiable. Always keep your speaker and signal cables well away from mains power and lighting circuits. Running them side-by-side is asking for electromagnetic interference, which creates that dreaded hum or buzz that can be an absolute nightmare to track down later.

• Secure Speaker Mounting: Every speaker needs to be fixed with hardware rated for its specific weight and the surface it's going on. For ceiling speakers in a suspended grid, that often means using safety tethers or C-rings to prevent sagging or failure. For heavier wall-mounted boxes, you must find a solid structural point to fix to—plasterboard alone won't cut it. Our guide on how to install ceiling speakers for perfect sound walks through this in more detail.

• Amplifier Ventilation: Amplifiers get hot. Seriously hot. Racking them up without giving them room to breathe is a recipe for disaster, leading to thermal shutdowns or, worse, permanent damage. As a rule of thumb, always leave at least 1U of empty rack space above and below your power amps to ensure they can stay cool.

Systematic Troubleshooting for Common Faults

Even on the best-installed systems, things can sometimes go wrong. The key is to stay calm and methodical. Don't just start unplugging things at random; work logically through the signal chain, from the audio source right through to the speakers.

When you're fault-finding, the process of elimination is your best friend. Isolate the problem by swapping a suspect cable or component with one you know is working. This simple technique turns a system-wide headache into a much easier component-level fix.

When you hit a snag, don't panic. Most issues are caused by a handful of common problems. We've put together a quick-reference table to help you diagnose and fix the most frequent faults you're likely to come across on-site.

Common PA System Fault Finder

Symptom	Likely Cause	Solution to Try First
Hum or Buzz	Ground loop or electrical interference.	Check that all system components are plugged into the same mains circuit. Try using a ground loop isolator on the audio signal path.
Feedback (Squealing)	Microphone is too close to a speaker or gain is too high.	Move the microphone further away from the speakers. Reduce the microphone channel's gain or volume on the mixer.
No Sound from One Speaker	Faulty cable, connection, or a dead speaker driver.	Test the speaker with a known working cable and amplifier channel. Check the speaker's internal wiring connections.
Muffled or Distorted Audio	Overloaded input, incorrect gain staging, or a blown speaker.	Reduce the input signal level at the mixer. Check that the amplifier is not being driven into clipping (check the clip lights).

Keep this handy, and you’ll be able to solve most issues in minutes, not hours.

Frequently Asked Questions

Even with the best planning, a few questions always pop up when you're in the thick of specifying and installing a PA system. This section is a quick-fire round of answers to the most common queries we get from integrators on the job, acting as a handy reference to keep in your back pocket.

100V Line Or Low Impedance?

Think of 100V line systems as the long-distance runners of the audio world. They are the perfect solution for big buildings like schools, hotels, or warehouses where you need to run speaker cables over very long distances and hook up loads of speakers to a single amplifier channel. The audio quality is spot-on for voice announcements and background music.

Low-impedance systems, which are typically 4 or 8 ohms, are the sprinters. They deliver the absolute best audio fidelity, making them the clear winner for foreground music in places like pubs, restaurants, or gyms where sound quality really matters. The only catch? You have to keep your speaker cables relatively short to avoid losing power and compromising that quality.

When Is a DSP Really Necessary?

A Digital Signal Processor (DSP) becomes your most important tool the moment you need to surgically fine-tune the sound to overcome a room's acoustic quirks.

A DSP gives you surgical control over the audio. It’s not just about turning things up or down; it’s about shaping the sound to fix real-world problems like echo in a church hall or boomy bass in a small bar, guaranteeing perfect clarity.

You'll definitely need a DSP for:

• Acoustically challenging spaces with lots of echo and reverb.
• Multi-zone systems that need different audio feeds and EQ settings for each area.
• High-performance setups where you need to protect your speakers with limiters.

How Can I Improve Vocal Intelligibility?

Getting crystal-clear speech is the main goal for most pa speaker systems. If you're wrestling with muffled or muddy vocals, your focus should be on the midrange frequencies.

The bulk of human speech sits somewhere between 300 Hz and 3 kHz. A gentle boost in this specific range with your mixer or DSP can work wonders, helping voices cut through the mix. It's also worth checking your speaker placement – make sure you aren't firing sound directly at hard, reflective surfaces like big windows or bare concrete walls.

---

For any project, from a simple background music setup to a complex, multi-zone voice alarm system, Epic Audio Ltd provides the expert advice and trade-only access to leading brands you need. Explore our full range of commercial audio solutions at https://epicaudio.co.uk.
